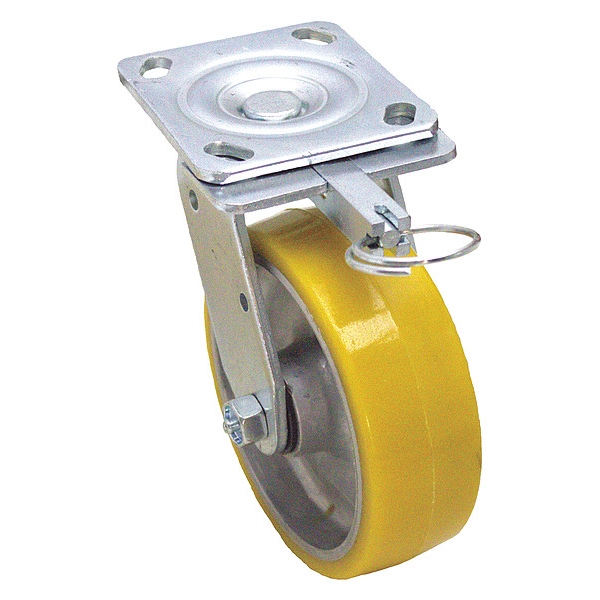

Zoro Select Plate Caster, 700 lb. Load Rating, Swivel P21S-UA040R-14-DL - main

Plate Caster, 700 lb. Load Rating, Swivel

  • Mfr # P21S-UA040R-14-DL

  • Zoro # G6630318

product price:  $40.95
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P21S-UA040R-14-DL
Zoro #
G6630318
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Bolt Dia.
3/8 in
Overall Height
5-5/8in
Swivel Radius
3-3/8 in
Mounting Plate Size
4 in x 4-1/2 in
Overall Wheel Width
2 in
Mounting Plate Length
4 in
Mounting Plate Thickness
0.236 in
Outside Slot Spacing - Length
3.625 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Outside Slot Spacing - Width
3 in
Inside Slot Spacing - Length
3 in

Details

Item
Swivel Caster With Directional-Lock
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
Directional Lock
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Yellow
Wheel Hardness Rating
92 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Core Color
Silver
Non-Marking
Yes
Inside Bolt Hole Spacing
3 in x 3 in
Extended Lead
No
Caster Plate Hole Pattern
B
Thread Guards
No
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Brake Included
No
Load Rating
700 lb
Caster Frame Material
Steel
Application
Dollies, Floor Trucks, Shop Carts, Warehouse Trucks, Waste Disposal Trucks
Caster Temp. Range Available
Yes
Standards
ANSI ICWM
Frame Finish
Zinc Plated
Wheel Color
Yellow
Features
Floor Protective
Number of Wheels
1
Includes
4-Position Directional Lock
Replacement Wheel
Mfr. No. P-UA-040x020/050R
Wheel/Tread Hardness Rating
Firm
Swivel Raceway Type
Double Ball
Includes Thread Guards
No
Swivel Lock Type
4-Position Directional Lock
Operating Temperature Range
-15 Degrees To 160 Degrees F
Wheel Core Material
Aluminum
Swivel Construction
Kingpin
Load Rating Range
Medium Duty
ESD Conductive
No
Series
P21 Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
Tread
Standard
Load Capacity
700 lb
Tread Color
Yellow
Load Capacity - Maximum
700 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Hole Type
Slot
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type 4-Position Directional Lock, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Directional Lock, Tread Shape Standard
