  6. Plate Caster, Rigid, Rubber, 4 3/8"H

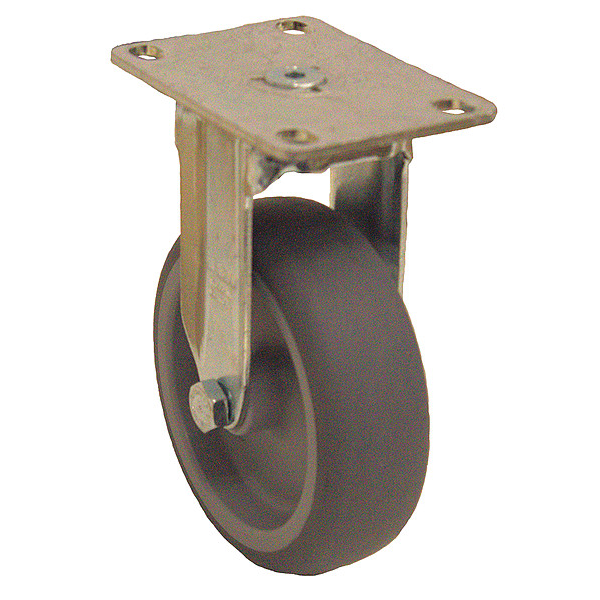

Zoro Select Plate Caster, Rigid, Rubber, 4 3/8"H BKPA-TPA 80G-12 - main

Plate Caster, Rigid, Rubber, 4 3/8"H

  • Mfr # BKPA-TPA 80G-12

  • Zoro # G3576183

product price:  $18.49
/ea

Key Features

Load Rating Range
Light-Duty
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Swivel Radius
None- Rigid Caster
Frame Finish
Zinc Plated
Swivel Lock Type
No Lock Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BKPA-TPA 80G-12
Zoro #
G3576183
UPC #
-
Country of Origin
Germany

Dimensions

Swivel Radius
None- Rigid Caster
Overall Height
4-3/8in
Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Wheel Dia.
3 1/8 in
Mounting Height
4 3/8 in
Mounting Plate Size
2-1/2in x 3-5/8in
Inside Slot Spacing - Width
1.75 in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Thickness
1/8in
Outside Slot Spacing - Length
3.063 in
For Axle Dia.
8 mm
Mounting Plate Length
2 1/2 in
Outside Slot Spacing - Width
1.75 in

Details

Load Rating Range
Light-Duty
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Frame Finish
Zinc Plated
Swivel Lock Type
No Lock Included
Tread Color
Gray
Load Rating
220 lb
Core Color
Gray
Wheel Bearing Type
Plain
Item
Rigid Caster
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Number of Wheels
1
Number of Mounting Holes
4
Thread Guards
No
Tread
Standard
Caster Frame Material
Steel
Caster Brake Type
No Brake
Standards
DIN EN 12530
Caster Mounting Type
Plate
Wheel/Tread Material
Thermoplastic Rubber
Caster Temp. Range Available
Yes
Includes Thread Guards
No
Wheel Core Material
Polypropylene
Caster Plate Hole Pattern
C
Application
Cases, Food Service Racks, Hospital Equipment, Hotel Equipment, Institutional Equipment, Laundry Trucks, Office Equipment, Stock Carts, Store Fixtures, Utility Carts
Caster Sub-Type
Rigid
Extended Lead
No
Replacement Wheel
Mfr. No. TPA 80/12G
Load Capacity
220 lb
Features
Floor Protective
Caster Brake Included
No
Tread Shape
Standard
Wheel Color
Gray
Wheel/Tread Hardness Rating
Soft
Non-Marking
Yes
Wheel/Tread Color
Gray
Resistant To
Very High Chemical Resistance To Many Aggressive Substances
Series
BKPA Series
System of Measurement
Inch
ESD Conductive
No
Compatible With
TPA 80/12G
Load Capacity - Maximum
220 lb
Wheel Hardness Rating
85 Shore A
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-10 Degrees F
Operating Temperature - Maximum
140 Degrees F
Operating Temperature Range
-4 Degrees To 140 Degrees F

Description

Rigid, Plate Caster, Load Rating 220 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/8 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
