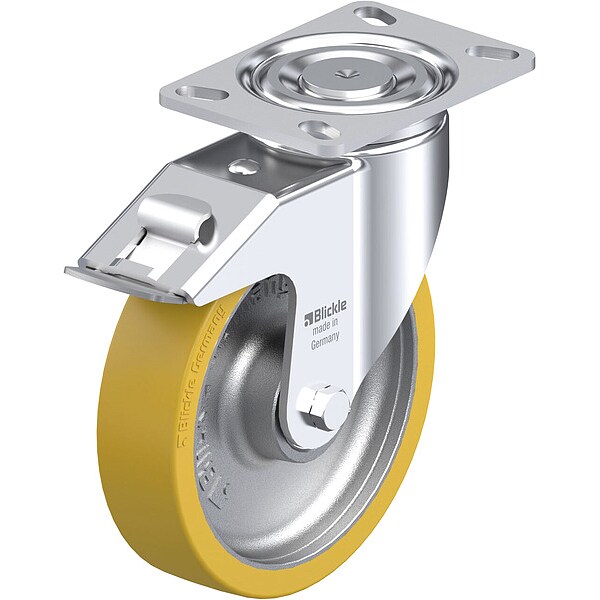

Plate Caster, Swivel, Polyurethane, 9 5/8"H

  • Mfr # LH-GTH 200K-16-FI

  • Zoro # G814810885

product price:
$
258.99
/ea
Free Shipping & Returns

Key Features

Swivel Construction
Kingpin
Wheel/Tread Color
Beige
Caster Brake Type
Total Lock
Non-Marking
Yes
Caster Frame Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LH-GTH 200K-16-FI
Zoro #
G814810885
UPC #
-
Country of Origin
Germany

Dimensions

Mounting Height
244 mm
Wheel Width
51 mm
Mounting Bolt Dia.
13 mm
Wheel Dia.
203 mm
Inside Slot Spacing - Length
125.413 mm
Inside Slot Spacing - Width
61.913 mm
Hub Length
61 mm
Mounting Plate Width
114 mm
Mounting Plate Thickness
6 mm
Outside Slot Spacing - Length
133.35 mm
Mounting Plate Length
114 mm
For Axle Dia.
12 mm
Overall Wheel Width
51 mm
Outside Slot Spacing - Width
85.725 mm

Details

Swivel Construction
Kingpin
Wheel/Tread Color
Beige
Caster Brake Type
Total Lock
Non-Marking
Yes
Caster Frame Material
Steel
Caster Mounting Type
Plate
Core Color
Silver
Item
Plate Caster
Series
GTH
Caster Sub-Type
Swivel
Features
Non-Staining, Particularly Resistant to Shocks and Impact Due to Four Specially-Shaped, Hardened Bearing Seats
Frame Finish
Zinc Plated
System of Measurement
Metric
Number of Mounting Holes
4
Application
Commercial
Number of Wheels
1
Brake Location
Rear
Tread Shape
Standard
Mounting Plate Shape
Rectangle
Swivel Raceway Type
Double Ball
Operating Temperature - Maximum
160 Degrees F
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel/Tread Material
Polyurethane
Wheel Core Type
Solid
Includes Thread Guards
No
Wheel Bearing Material
Steel
Frame Construction
Pressed
Wheel Core Material
Iron
Mounting Hole Type
Slot
Wheel Hardness Rating
92 Shore A
Load Capacity - Maximum
4,960 lb
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-5 Degrees F
Wheel Bearing Type
Ball
Product Type
Plate Caster

Description

Swivel, Plate Caster, Wheel Dia. 203 mm, Wheel Width 51 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
