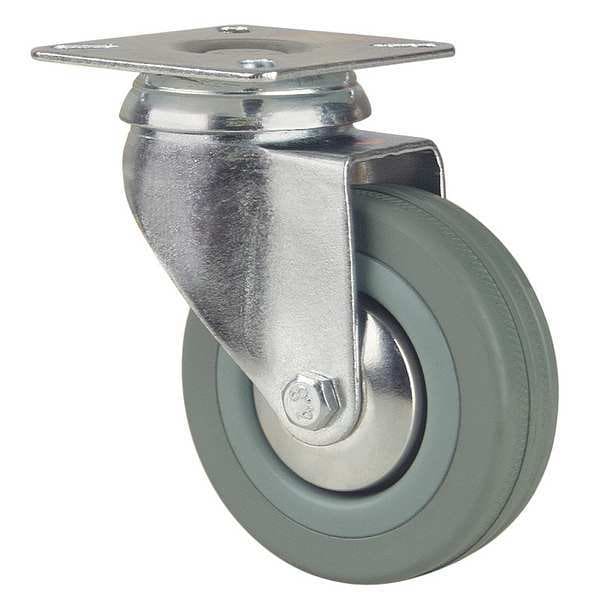

Zoro Select Plate Caster, Swivel, Rubber, 4 in, 176 lb, D TSED 100 RN0D - main

Plate Caster, Swivel, Rubber, 4 in, 176 lb, D

  • Mfr # TSED 100 RN0D

  • Zoro # G4396786

product price:  $10.19
/ea

Key Features

Wheel Color
Gray
Load Rating
176 lb
Wheel Width
1 1/8 in
Core Color
Gray
Extended Lead
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TSED 100 RN0D
Zoro #
G4396786
UPC #
-
Country of Origin
United Kingdom

Dimensions

Wheel Width
1 1/8 in
Mounting Bolt Dia.
5/16 in
Overall Height
5-3/16in
Wheel Dia.
4 in
Mounting Plate Size
3 in x 3 in
Mounting Height
5 3/16 in
For Axle Dia.
8 mm
Mounting Plate Width
3 in
Mounting Plate Thickness
3/32 in
Mounting Plate Length
3 in
Bolt Hole Spacing - Width
2.25 in
Bolt Hole Spacing - Length
2.25 in
Overall Wheel Width
27 mm

Details

Wheel Color
Gray
Load Rating
176 lb
Core Color
Gray
Extended Lead
No
Outside Bolt Hole Spacing
2-1/4 in x 2-1/4 in
Caster Temp. Range Available
Yes
Standards
ISO 9001
Inside Bolt Hole Spacing
2-1/4 in x 2-1/4 in
Number of Wheels
1
Thread Guards
No
Application
General Purpose
Caster Plate Hole Pattern
D
Caster Frame Material
Steel
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Non-Marking
No
Caster Brake Included
No
Item
Plate Caster
System of Measurement
Inch
Caster Brake Type
No Brake
Load Rating Range
0 to 299 lb
Includes Thread Guards
Yes
Wheel Core Material
Nylon
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Number of Mounting Holes
4
Wheel Bearing Type
Plain
Tread Shape
Standard
Swivel Construction
Kingpin
Wheel/Tread Material
Rubber
Wheel/Tread Color
Gray
Wheel Hardness Rating
80 Shore D
Load Capacity - Maximum
176 lb
Mounting Hole Type
Hole
Wheel Core Type
Solid
Mounting Plate Shape
Square
For Surface Type
Ceramic, Tile, Vinyl, Wood
Operating Temperature Range
14 Degrees to 104 Degrees F
Operating Temperature - Maximum
100 Degrees F
Operating Temperature - Minimum
15 Degrees F

Description

Swivel, Plate Caster, Load Rating 176 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 1/8 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
