  11. PlateCaster, Swivel, Polypropylene, 7 1/2"H

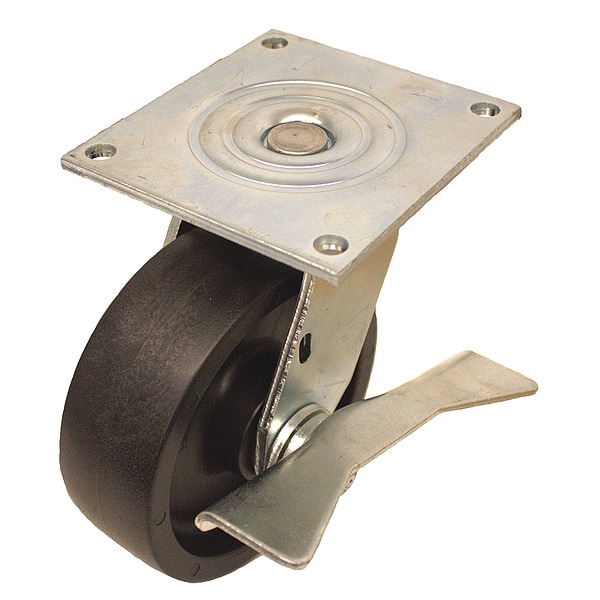

Zoro Select PlateCaster, Swivel, Polypropylene, 7 1/2"H P21S-PB060R-15-CB - main

PlateCaster, Swivel, Polypropylene, 7 1/2"H

  • Mfr # P21S-PB060R-15-CB

  • Zoro # G3575230

product price: $43.89
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Side Brake
Wheel Dia.
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-PB060R-15-CB
Zoro #
G3575230
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
5in x 5-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
7-1/2in
Swivel Radius
5 in
Bolt Hole Spacing - Width
4.125 in
For Axle Dia.
1/2 in
Overall Wheel Width
2 in
Mounting Plate Length
5 in
Bolt Hole Spacing - Length
4.5 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
Side Brake
Load Rating
700 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
65 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Plate Hole Pattern
D
Swivel Raceway Type
Double Ball
Standards
RoHS, ICWM, NSF
Tread
Standard
Wheel Core Material
Polypropylene
Caster Temp. Range Available
Yes
Tread Color
Black
Includes Thread Guards
No
Swivel Construction
Kingpin
Caster Brake Included
Yes
Extended Lead
No
Features
Chemical Resistance
Frame Finish
Zinc Plated
Replacement Wheel
Mfr. No. P-PB-060x020/050R
Wheel Color
Black
Wheel/Tread Hardness Rating
Hard
Load Rating Range
Light-Medium Duty
Includes
Pinch Type Brake
Swivel Lock Type
No Lock Included
Thread Guards
No
Application
Retail, Industrial, Commercial, Corrosion Resistance
Accessories
Optional: P-DL21-15 (Directional Lock)
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
700 lb
Series
P21 Series
Load Capacity - Maximum
700 lb
Compatible With
P-PB-060X020/050R
Brake Location
Side
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Caster Features
Corrosion-Resistant, Maintenance Free
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-20 Degrees To 180 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 700 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Polypropylene, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
