  11. PlateCaster, Swivel, Polyurethane, 6 7/16"H
Zoro Select PlateCaster, Swivel, Polyurethane, 6 7/16"H P25S-ALBS 127K-14 - main

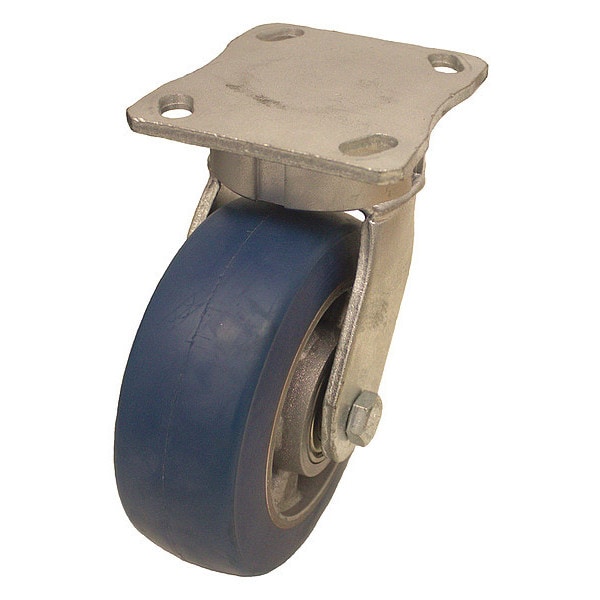

PlateCaster, Swivel, Polyurethane, 6 7/16"H

  • Mfr # P25S-ALBS 127K-14

  • Zoro # G3581835

product price: $100.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
4 15/16 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P25S-ALBS 127K-14
Zoro #
G3581835
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
4 15/16 in
Wheel Width
2 1/8 in
Mounting Height
6 7/16 in
Mounting Plate Size
4in x 4-1/2in
Mounting Plate Thickness
1/4in
Mounting Bolt Dia.
3/8 in
Overall Height
6-1/2in
Swivel Radius
3-7/8 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Length
4 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in
Outside Slot Spacing - Width
3 in
Overall Wheel Width
2 1/8 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
990 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Blue
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Crown
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Inside Bolt Hole Spacing
3 in x 3 in
Caster Plate Hole Pattern
B
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Wheel Core Material
Aluminum
Swivel Lock Type
No Lock Included
Caster Temp. Range Available
Yes
Extended Lead
No
Swivel Raceway Type
Single Ball
Caster Brake Included
No
Features
Push/Pull Force Reduction
Includes Thread Guards
No
Load Rating Range
Light-Medium Duty
Frame Finish
Zinc Plated
Thread Guards
No
Wheel/Tread Hardness Rating
Soft
Wheel Color
Blue
Swivel Construction
Kingpinless
Replacement Wheel
Mfr. No. ALBS 127/20K
Standards
RoHS, ICWM
Series
P25 Series
Accessories
Optional: P-DL25-14 (Directional Lock)
Tread Color
Blue
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
1000 lb
Tread
Standard
Load Capacity - Maximum
990 lb
Compatible With
ALBS 127/20K
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Debris-Resistant
Operating Temperature - Minimum
-15 Degrees F
Operating Temperature Range
-15 Degrees To 160 Degrees F
Operating Temperature - Maximum
160 Degrees F

Description

Swivel, Plate Caster, Load Rating 990 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 15/16 in, Wheel Width 2 1/8 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
