  11. PlateCaster, Swivl, Polyurethane, 4 15/16"H

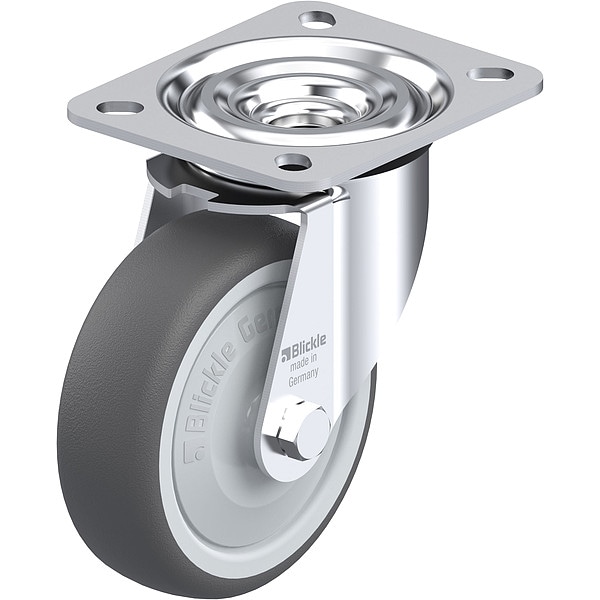

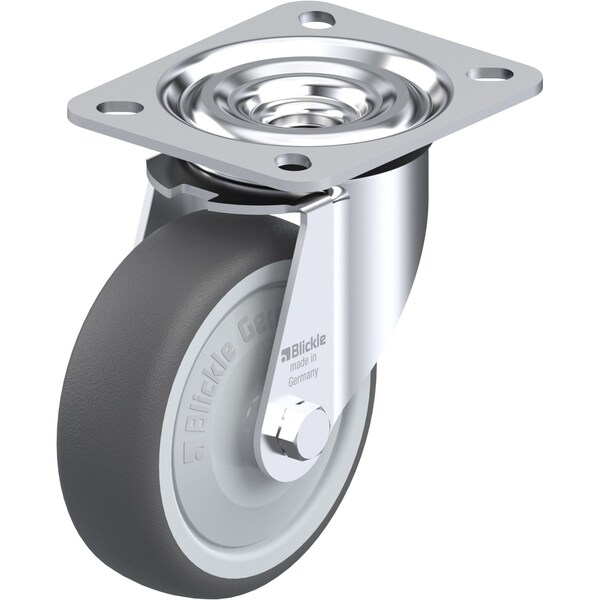

Zoro Select PlateCaster, Swivl, Polyurethane, 4 15/16"H L-PATH 100KF - main

PlateCaster, Swivl, Polyurethane, 4 15/16"H

  • Mfr # L-PATH 100KF

  • Zoro # G414810940

product price: $54.55
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
102 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
L-PATH 100KF
Zoro #
G414810940
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
102 mm
Wheel Width
32 mm
Mounting Height
125 mm
Mounting Plate Thickness
3 mm
Mounting Bolt Dia.
9 mm
Inside Slot Spacing - Length
76 mm
Mounting Plate Length
100 mm
Outside Slot Spacing - Width
60 mm
For Axle Dia.
8 mm
Inside Slot Spacing - Width
55 mm
Outside Slot Spacing - Length
80 mm
Overall Wheel Width
32 mm
Hub Length
36 mm
Mounting Plate Width
86 mm

Details

Item
Plate Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Series
PATH
Features
Minimum Swivel Head Play and Smooth Rolling Characteristic and Increased Service Life Due to the Special Dynamic Blickle Riveting Process, Non-Staining, Synthetic Thread Guard Large
Swivel Construction
Kingpin
Frame Finish
Zinc Plated
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Operating Temperature - Maximum
70 Degrees C
Wheel Bearing Material
Steel
Includes Thread Guards
Yes
Wheel Core Type
Solid
Swivel Bearing Seal Type
Sealed
Frame Construction
Pressed
Mounting Hole Type
Slot
Operating Temperature - Minimum
-20 Degrees C
NSF Listed
No
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Mounting Plate Shape
Rectangle
Wheel Core Material
Nylon
Swivel Raceway Type
Double Ball
Load Capacity - Maximum
440 lb

Description

Swivel, Plate Caster, Wheel Dia. 102 mm, Wheel Width 32 mm, Wheel/Tread Material Polyurethane, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
