  6. Plt Cstr, Rgd, Forgd Steel, 10", 7500 lb.

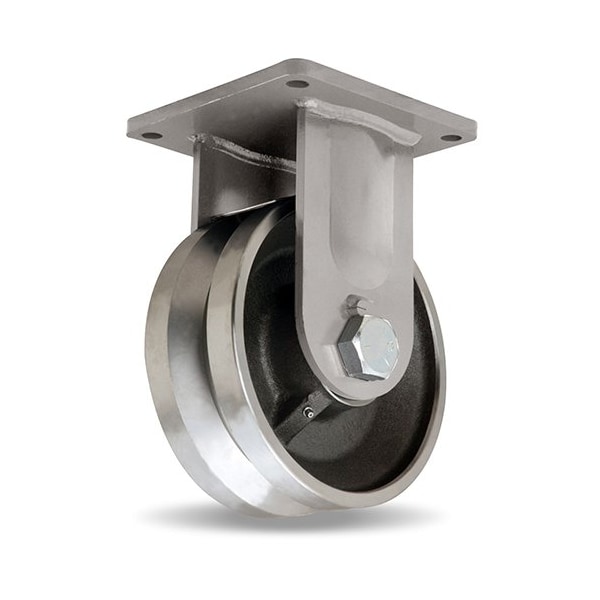

Zoro Select Plt Cstr, Rgd, Forgd Steel, 10", 7500 lb. R-MD-104FVT - main

Plt Cstr, Rgd, Forgd Steel, 10", 7500 lb.

  • Mfr # R-MD-104FVT

  • Zoro # G9261487

product price:  $600.99
/ea
Free Shipping & Returns

Key Features

Caster Sub-Type
Rigid
Wheel/Tread Material
Steel
Caster Brake Type
No Lock Included
Wheel Dia.
10 in
Wheel Width
4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-MD-104FVT
Zoro #
G9261487
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
10 in
Wheel Width
4 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Mounting Plate Thickness
1/2in
Mounting Bolt Dia.
5/8 in
Overall Height
13in

Details

Item
Plte Caster
Caster Sub-Type
Rigid
Wheel/Tread Material
Steel
Caster Brake Type
No Lock Included
Load Rating
7500 lb
Wheel Bearing Type
Roller
Wheel Hardness Rating
179 BHN
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
7 in x 7 in
Inside Bolt Hole Spacing
7 in x 7 in
Caster Plate Hole Pattern
D
Wheel Color
Silver
Application
All Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts
Replacement Wheel
Mfr. No. W-1040-FVT-1-1/4
Includes
Spanner Bushing
Extended Lead
No
Standards
ICWM
Caster Brake Included
No
Frame Finish
Enamel
Caster Temp. Range Available
Yes
Thread Guards
No
Load Rating Range
Extra Super Duty
Tread Shape
Standard
Wheel Core Material
Forged Steel
Swivel Lock Type
No Lock Included
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
250 Degrees F

Description

Rigid, Plte Caster, Load Rating 7500 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 4 in, Wheel/Tread Material Steel, Wheel Core Material Forged Steel, Non-Marking No, Number of Wheels 1, Tread Shape Standard
