  11. Rigid Plate Caster, Rubber, 3 in., 270 lb.

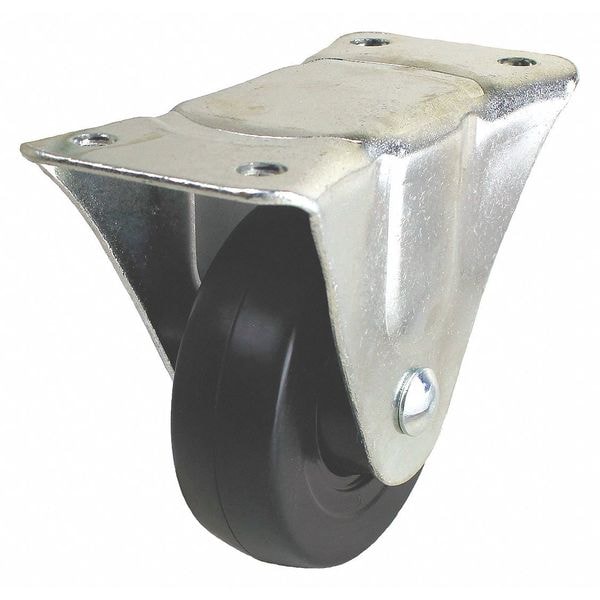

Zoro Select Rigid Plate Caster, Rubber, 3 in., 270 lb. P2R-R030G-P - main

Rigid Plate Caster, Rubber, 3 in., 270 lb.

  • Mfr # P2R-R030G-P

  • Zoro # G4824854

product price: $8.15
/ea

Key Features

Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
3 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P2R-R030G-P
Zoro #
G4824854
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 in
Wheel Width
1 5/16 in
Mounting Height
3 13/16 in
Mounting Plate Size
2-5/16in x 4-7/8in
Mounting Plate Thickness
1/8in
Mounting Bolt Dia.
5/16 in
Overall Height
3-13/16in
For Axle Dia.
5/16 in
Bolt Hole Spacing - Width
4 in
Mounting Plate Length
2 7/16 in
Overall Wheel Width
1 5/16 in
Bolt Hole Spacing - Length
1.188 in

Details

Item
Rigid Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
210 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
80 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/16 in x 4 in
Inside Bolt Hole Spacing
1-3/16 in x 4 in
Caster Plate Hole Pattern
D
Extended Lead
No
Wheel Color
Black
Thread Guards
No
Includes
Complete Caster
Standards
RoHS, ICWM
Features
Noise Reduction
Application
Retail, Industrial, Commercial
Caster Brake Included
No
Frame Finish
Zinc Plated
Caster Temp. Range Available
Yes
Includes Thread Guards
No
Wheel Core Material
Rubber
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Soft
Load Rating Range
Light-Duty
Tread Color
Black
Load Capacity
210 lb
Tread
Standard
Resistant To
Chemical Resistance To Many Aggressive Substances, Except Oils
ESD Conductive
No
Series
P2 Series
Load Capacity - Maximum
210 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Caster Features
Corrosion-Resistant
Mounting Hole Type
Hole
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-40 Degrees to 180 Degrees F

Description

Rigid, Plate Caster, Load Rating 210 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 5/16 in, Wheel/Tread Material Rubber, Wheel Core Material Rubber, Non-Marking No, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
