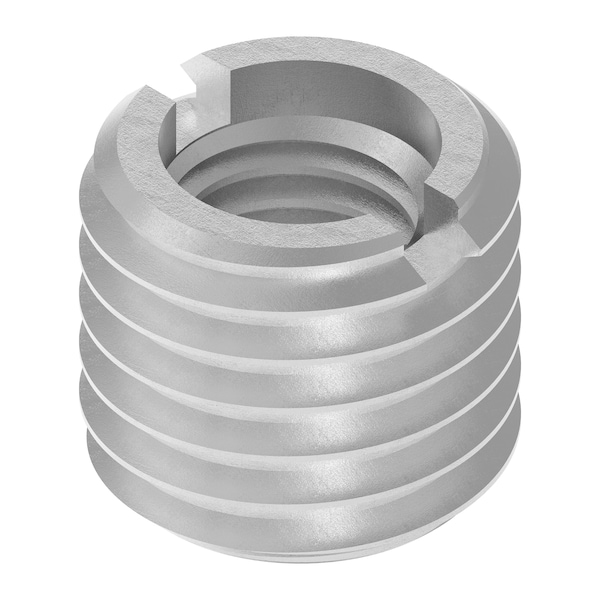

Standard Wall Self Locking Thread Insert, M12-1.75 Int Thrd Sz, 18-8 Stainless Steel
Mfr # EZ-653-12
Zoro # G509228230
CAD Available
product price: $164.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Material
18-8 Stainless Steel
Overall Length
17 mm
Insert Diameter
3/4 in
External Thread Size
3/4"-10
Wall Type
Standard Wall
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EZ-653-12
Zoro #
G509228230
UPC #
847554044032
Country of Origin
United States
Dimensions
Internal Thread Size
M12-1.75
Overall Length
17 mm
Insert Diameter
3/4 in
External Thread Size
3/4"-10
Drill Bit Size
21/32 in
Minimum Installation Depth
3/4 in
Maximum Hole Diameter
0.656 in
Compatible Tap Size
3/4"-10
Details
CAD Available
Yes
Item
Self Locking Thread Insert
Material
18-8 Stainless Steel
Wall Type
Standard Wall
Thread Type
Coarse
Installation Method
Drive Tool, Screwdriver
Includes
(10) Threaded Inserts, Drill, Tap and Drive-Tool
Finish
Plain
Compatible Material
Metal
Features
Easy to use Solution for Repairing or Reinforcing Tapped Holes in Metal, Everything Needed for Installation in a Convenient Kit, Ideal for Soft Metals, Like Aluminum, Cast Iron and Magnesium
Thread Pitch
1.75 mm
System of Measurement
Inch/Metric
Drive Type
Slotted
Thread Direction
Right Hand
Internal Thread Fit
6H
External Thread Fit
2A
Description
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 3/4 In.-10, Drill Bit Size 21/32, External Thread Fit 2A, External Thread Size 3/4 In.-10, Finish Plain, Insert Diameter 3/4 in, Internal Thread Fit 6H, Internal Thread Size M12-1.75, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.656 in, Minimum Installation Depth 3/4 in, Overall Length 17 mm, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
