  11. Swivel Plate Caster, 250 lb., Steel

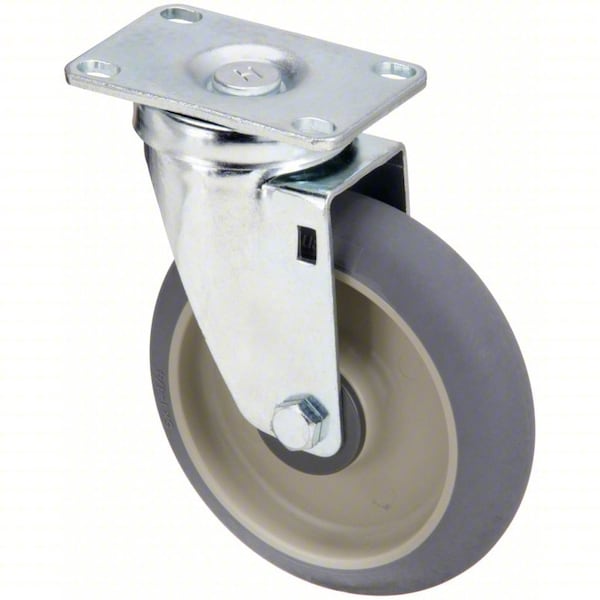

Zoro Select Swivel Plate Caster, 250 lb., Steel P12KS-RCP035K-12 - main

Swivel Plate Caster, 250 lb., Steel

  • Mfr # P12KS-RCP035K-12

  • Zoro # G1611513

product price: $28.99
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Wheel Dia.
3 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P12KS-RCP035K-12
Zoro #
G1611513
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
3 1/2 in
Wheel Width
1 1/4 in
Mounting Height
4 11/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Mounting Plate Thickness
5/32in
Mounting Bolt Dia.
5/16 in
Swivel Radius
3 in
Stem Dia.
No Stem
Overall Height
4-11/16in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Width
1.75 in
For Axle Dia.
3/8 in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Length
2 1/2 in
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.813 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Thermoplastic Rubber
Caster Brake Type
No Brake
Load Rating
250 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Gray
Wheel Hardness Rating
90 Shore A
Number of Mounting Holes
4
Tread Shape
Donut Tread
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Caster Plate Hole Pattern
C
Frame Finish
Zinc Plated
Caster Brake Included
No
Standards
RoHS, ICWM
Caster Temp. Range Available
Yes
Thread Guards
Yes
Features
Floor Protection, Noise Reduction, Reduced Push/Pull Force
Replacement Wheel
Mfr. No. P-RCP-035x013/038K
Caster Stem Type
No Stem/Plate Included
Includes
Thread Guards
Extended Lead
No
Wheel Color
Gray
Application
Retail, Industrial, Commercial
Tread
Crowned
Tread Color
Gray
Includes Thread Guards
Yes
Load Rating Range
Light-Duty
Swivel Lock Type
No Lock Included
Operating Temperature Range
-40 Degrees to 180 Degrees F
Wheel/Tread Hardness Rating
Firm
Wheel Core Material
Polypropylene
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Series
P12K Series
Resistant To
High Chemical Resistance To Many Aggressive Substances
ESD Conductive
No
Load Capacity
250 lb
Compatible With
P-RCP-035X013/038B-TG
Load Capacity - Maximum
250 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Operating Temperature - Minimum
-45 Degrees F
Operating Temperature - Maximum
180 Degrees F

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/2 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
