  11. Swivel Plate Caster, Polyurethane, 5 in, 770 lb
Zoro Select Swivel Plate Caster, Polyurethane, 5 in, 770 lb LK-ALST 125K-1 - main

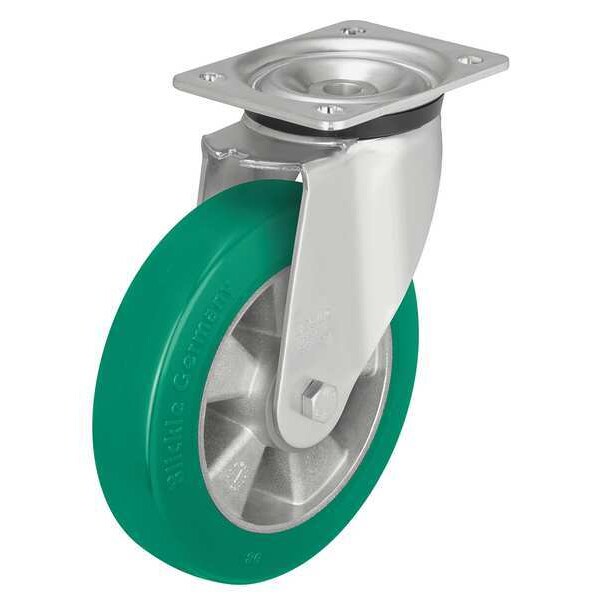

Swivel Plate Caster, Polyurethane, 5 in, 770 lb

  • Mfr # LK-ALST 125K-1

  • Zoro # G6684754

product price: $65.69
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
No Brake
Wheel Dia.
5 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LK-ALST 125K-1
Zoro #
G6684754
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
5 in
Wheel Width
1 9/16 in
Mounting Height
6 1/8 in
Mounting Plate Size
3-3/8in x 3-15/16in
Mounting Plate Thickness
9/64in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Overall Height
6-1/8in
Swivel Radius
110.5 mm
Mounting Plate Length
3 3/8 in
Bolt Hole Spacing - Length
3.156 in
For Axle Dia.
10 mm
Overall Wheel Width
1 9/16 in
Bolt Hole Spacing - Width
2.375 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Aluminum/Polyurethane Elastomer
Caster Brake Type
No Brake
Load Rating
770 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
A
Caster Brake Included
No
Caster Temp. Range Available
No
Frame Finish
Zinc Plated
Application
Food Service, Food Processing, Drug Manufacturing, Retail, Industrial, Commercial, Automotive, Clean Room, Aerospace
Thread Guards
No
Extended Lead
No
Replacement Wheel
Mfr. No. ALST 125/15K
Caster Stem Type
No Stem/Plate Included
Standards
RoHS, ICWM
Wheel Color
Green
Tread
Standard
Tread Color
Green
Wheel/Tread Hardness Rating
Soft
Wheel Core Material
Aluminum
Includes Thread Guards
No
Swivel Raceway Type
Double Ball
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Load Rating Range
Heavy-Duty
Series
LK Series
ESD Conductive
No
Load Capacity
350 kg
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity - Maximum
770 lb
Compatible With
ALST 125/15K
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Bearing Material
Steel
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Caster Features
Debris-Resistant
Mounting Hole Type
Hole
Operating Temperature Range
-25 Degrees To 70 Degrees C

Description

Swivel, Plate Caster, Load Rating 770 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 9/16 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
