  11. Swivel Plate Caster, Rubber, 3-1/8 in., 308 lb, Gry
Zoro Select Swivel Plate Caster, Rubber, 3-1/8 in., 308 lb, Gry LEX-POEV 80XR-SG - main

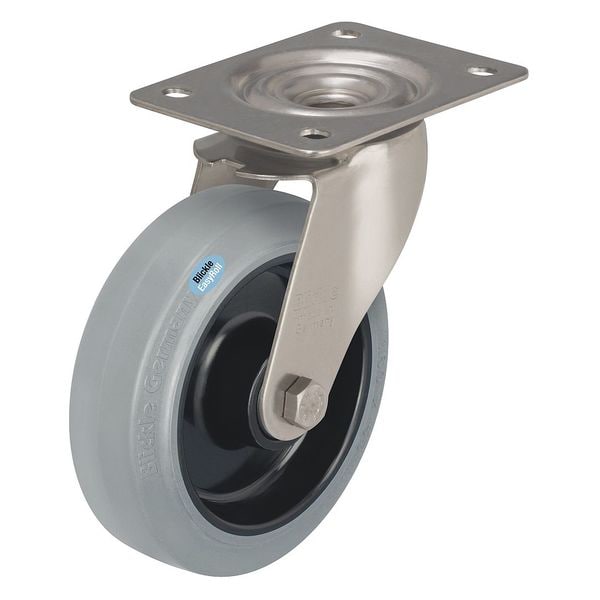

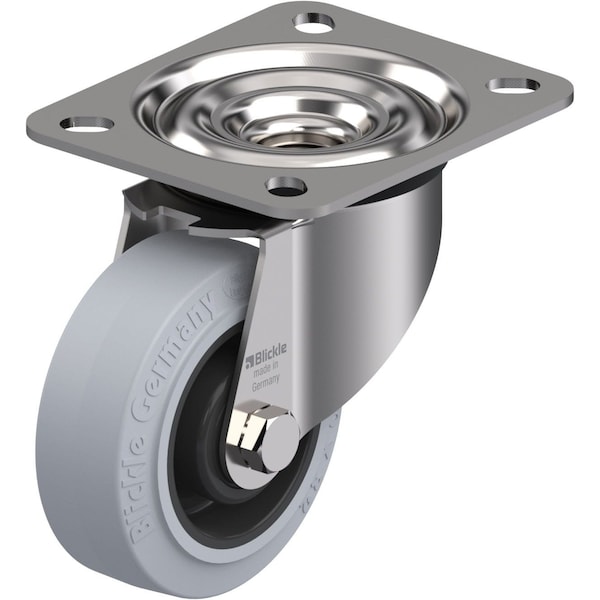

Swivel Plate Caster, Rubber, 3-1/8 in., 308 lb, Gry

  • Mfr # LEX-POEV 80XR-SG

  • Zoro # G0385911

product price: $49.99
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
No Brake
Wheel Dia.
3 1/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LEX-POEV 80XR-SG
Zoro #
G0385911
UPC #
-
Country of Origin
Germany

Dimensions

Wheel Dia.
3 1/8 in
Wheel Width
1 1/4 in
Mounting Height
4 in
Mounting Plate Size
3-15/16in x 3-3/8in
Mounting Plate Thickness
7/64in
Mounting Bolt Dia.
5/16 in
Overall Height
4in
Stem Dia.
No Stem
Swivel Radius
78 mm
For Axle Dia.
8 mm
Mounting Plate Length
3 3/8 in
Bolt Hole Spacing - Width
2.375 in
Bolt Hole Spacing - Length
3.156 in
Overall Wheel Width
1 1/4 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Metric
Wheel/Tread Material
Nylon/Solid Rubber
Caster Brake Type
No Brake
Load Rating
305 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Gray
Wheel Hardness Rating
65 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Stainless Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
60 mm x 80 mm
Inside Bolt Hole Spacing
60 mm x 80 mm
Caster Plate Hole Pattern
A
Wheel Color
Gray
Replacement Wheel
Mfr. No. POEV 80/12XR-SG
Extended Lead
No
Standards
RoHS, ICWM
Features
Corrosion Resistant
Caster Temp. Range Available
No
Frame Finish
Stainless Steel
Thread Guards
No
Application
Retail, Industrial, Commercial
Caster Brake Included
No
Caster Stem Type
No Stem/Plate Included
Tread
Standard
Tread Color
Gray
Swivel Raceway Type
Double Ball
Load Rating Range
Heavy-Duty
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Swivel Construction
Kingpin
Wheel Core Material
Nylon
ESD Conductive
No
Series
LEX Series
Resistant To
High Chemical Resistance To Many Aggressive Substances, Except Oils
Load Capacity
140 kg
Caster Features
Corrosion-Resistant, Debris-Resistant
Load Capacity - Maximum
310 lb
Compatible With
POEV 80/12XR-SG
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel
Wheel Core Type
Solid
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole
Wheel Bearing Material
Steel
Operating Temperature Range
-25 Degrees To 80 Degrees C

Description

Swivel, Plate Caster, Load Rating 305 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 1/8 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
