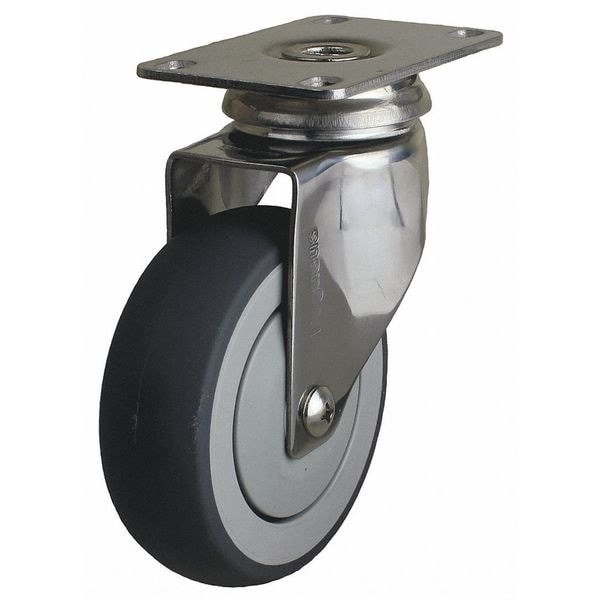

Zoro Select Swivel Plate Caster, TPR, 3 in., 190 lb. P14S-RP030K-12 - main

Swivel Plate Caster, TPR, 3 in., 190 lb.

  • Mfr # P14S-RP030K-12

  • Zoro # G1029935

product price:  $15.75
/ea

Key Features

Caster Frame Material
Stainless Steel
Swivel Radius
2 29/32 in
Overall Height
4-7/16in
Core Color
Gray
Caster Stem Type
No Stem/Plate Included
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
P14S-RP030K-12
Zoro #
G1029935
UPC #
-
Country of Origin
China

Dimensions

Swivel Radius
2 29/32 in
Overall Height
4-7/16in
Wheel Dia.
3 in
Wheel Width
1 1/4 in
Mounting Bolt Dia.
5/16 in
Stem Dia.
No Stem
Mounting Height
4 7/16 in
Mounting Plate Size
2-1/2in x 3-5/8in
Overall Wheel Width
1 1/4 in
Inside Slot Spacing - Length
2.813 in
Mounting Plate Thickness
1/8in
Outside Slot Spacing - Length
3.063 in
Mounting Plate Length
2 1/2 in
Outside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Width
1.75 in
For Axle Dia.
8 mm

Details

Caster Frame Material
Stainless Steel
Core Color
Gray
Caster Stem Type
No Stem/Plate Included
Wheel Color
Gray
Caster Brake Included
No
Load Rating
165 lb
Standards
ANSI ICWM
Caster Sub-Type
Swivel
Number of Wheels
1
Extended Lead
No
Caster Temp. Range Available
Yes
Includes
Thread Guards
Non-Marking
Yes
Inside Bolt Hole Spacing
1-3/4 in x 2-13/16 in
Frame Finish
Chrome
Thread Guards
Yes
Item
Swivel Caster
Caster Plate Hole Pattern
C
Application
Case Carts, Food Service, Hospital Equipment, Institutional Equipment, Medical Equipment, Store Fixtures, Utility Carts
Outside Bolt Hole Spacing
1-3/4 in x 3-1/16 in
Caster Mounting Type
Plate
Tread Color
Gray
Replacement Wheel
Mfr. No. P-RP-030x013/031K
System of Measurement
Inch
Tread
Standard
Caster Brake Type
No Brake
Tread Shape
Crown
Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Wheel Core Material
Polypropylene
Load Rating Range
Light-Duty
Swivel Construction
Kingpin
Swivel Raceway Type
Double Ball
Includes Thread Guards
Yes
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Thermoplastic Rubber
Wheel/Tread Color
Gray
Resistant To
High Chemical Resistance To Many Aggressive Substances
Load Capacity
165 lb
ESD Conductive
No
Series
P14 Series
Wheel Hardness Rating
90 Shore A
Load Capacity - Maximum
165 lb
Mounting Hole Type
Slot
Caster Features
Corrosion-Resistant, Debris-Resistant, Maintenance Free, Quiet-Roll
Wheel Core Type
Solid
Wheel Bearing Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Mounting Plate Shape
Rectangle
Operating Temperature - Minimum
-30 Degrees F
Operating Temperature - Maximum
180 Degrees F
Operating Temperature Range
-30 Degrees to 180 Degrees F

Description

Swivel, Plate Caster, Load Rating 165 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
