  11. Swivl Plt Castr, Cast Iron, 6 in., 1200 lb.

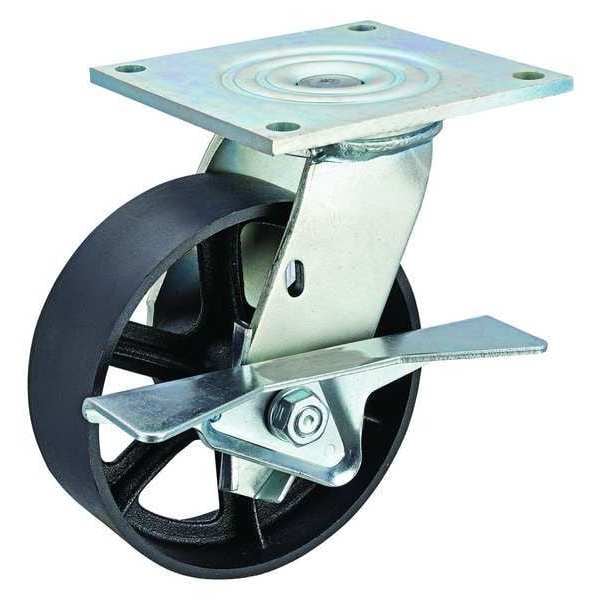

Zoro Select Swivl Plt Castr, Cast Iron, 6 in., 1200 lb. P21S-C060R-15-CB-001 - main

Swivl Plt Castr, Cast Iron, 6 in., 1200 lb.

  • Mfr # P21S-C060R-15-CB-001

  • Zoro # G2156926

product price: $44.99
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
Side Brake
Wheel Width
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P21S-C060R-15-CB-001
Zoro #
G2156926
UPC #
190735404874
Country of Origin
China

Dimensions

Wheel Dia.
6 in
Wheel Width
2 in
Mounting Height
7 1/2 in
Mounting Plate Size
5in x 5-1/2in
Mounting Plate Thickness
15/64in
Mounting Bolt Dia.
3/8 in
Overall Height
7-1/2in
Stem Dia.
No Stem
Swivel Radius
5 in
For Axle Dia.
1/2 in
Bolt Hole Spacing - Width
4.125 in
Overall Wheel Width
2 in
Bolt Hole Spacing - Length
4.5 in
Mounting Plate Length
5 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Cast Iron
Caster Brake Type
Side Brake
Load Rating
1200 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Roller
Wheel/Tread Color
Black
Wheel Hardness Rating
220 BHN
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
No
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Inside Bolt Hole Spacing
4-1/8 in x 4-1/2 in
Caster Plate Hole Pattern
D
Caster Brake Included
Yes
Thread Guards
No
Wheel Color
Black
Caster Stem Type
No Stem/Plate Included
Standards
RoHS, ICWM, NSF
Features
Corrosion Resistant
Frame Finish
Zinc Plated
Caster Temp. Range Available
No
Tread
Standard
Includes
Pinch Type Brake
Tread Color
Silver
Application
Retail, Industrial, Commercial
Replacement Wheel
Mfr. No. P-C-060x020/050R-001
Swivel Raceway Type
Double Ball
Load Rating Range
Medium-Duty
Includes Thread Guards
No
Wheel/Tread Hardness Rating
Extra Hard
Swivel Construction
Kingpin
Swivel Lock Type
No Lock Included
Wheel Core Material
Cast Iron
Extended Lead
No
ESD Conductive
No
Resistant To
High Chemical Resistance To Many Aggressive Substances
Accessories
Optional: P-DL21-15 (Directional Lock)
Series
P21 Series
Load Capacity
1200 lb
Caster Features
Corrosion-Resistant
Load Capacity - Maximum
1,200 lb
Wheel Core Type
Spoke
Brake Location
Side
Mounting Plate Shape
Rectangle
Wheel Bearing Material
Steel
For Surface Type
Grease, Metal Scrap, Oil, Rubber, Steel, Wood
Mounting Hole Type
Hole
Operating Temperature Range
Up To 800 Degrees F

Description

Swivel, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 2 in, Wheel/Tread Material Iron, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
