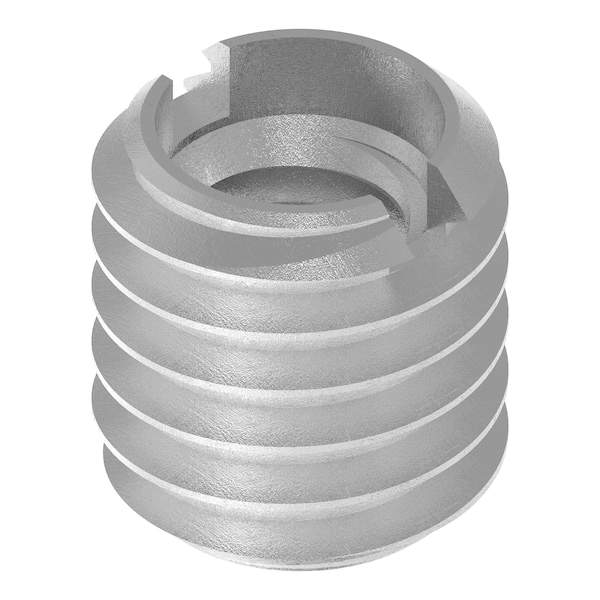

Thin Wall Self Locking Thread Insert, M6-1.00 Int Thrd Sz, Steel
- Mfr # EZ-310-M6
- Zoro # G909228311
CAD Available
product price:Â
$
59.49
/ea
Key Features
CAD Drawing
Internal Thread Size
M6-1.00
Material
Steel
Overall Length
10 mm
Insert Diameter
3/8 in
External Thread Size
3/8"-16
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- EZ-310-M6
- Zoro #
- G909228311
- UPC #
- 847554010617
- Country of Origin
- United States
- CAD Available
- Yes
- Item
- Self Locking Thread Insert
- Material
- Steel
- Wall Type
- Thin Wall
- Thread Type
- Coarse
- Installation Method
- Drive Tool
- Tensile Strength (PSI)
- 78,300 psi
- Includes
- (10) Threaded Inserts, Drill, Tap and Drive-Tool
- Brinell Hardness
- 163
- Finish
- Black Phosphate
- Compatible Material
- Metal
- System of Measurement
- Inch/Metric
- Material Grade/Class
- 12L14
- Thread Pitch
- 1 mm
- Features
- Easy to use Solution for Repairing or Reinforcing Tapped Holes in Metal, Everything Needed for Installation in a Convenient Kit, Ideal for Soft Metals, Like Aluminum, Cast Iron and Magnesium
- Drive Type
- Slotted
- Thread Direction
- Right Hand
- Internal Thread Fit
- 2B
- External Thread Fit
- 2A
- Tensile Strength
- 78,300 psi
- Shell Material
- Steel
- Traction Material
- Steel
Dimensions
- Internal Thread Size
- M6-1.00
- Overall Length
- 10 mm
- Insert Diameter
- 3/8 in
- External Thread Size
- 3/8"-16
- Drill Bit Size
- Q
- Minimum Installation Depth
- 7/16 in
- Compatible Tap Size
- 3/8"-16
- Maximum Hole Diameter
- 0.332 in
- Wire Rope Length
- 10 mm
- Length
- 10 mm
- Hole Diameter - Maximum
- 0.332 in
Description
Self-Locking Insert Kit, Compatible Material Metal, Compatible Tap Size 3/8 In.-16, Drill Bit Size 11/32 in, External Thread Fit 2A, External Thread Size 3/8 In.-16, Finish Black Finish, Insert Diameter 3/8 in, Internal Thread Fit 2B, Internal Thread Size M6x1.00, Material Steel, Material Grade/Class 12L14, Maximum Hole Diameter 0.332 in, Minimum Installation Depth 7/16 in, Overall Length 10 mm, System of Measurement Inch/Metric, Thread Direction Right Hand, Thread Type Coarse
