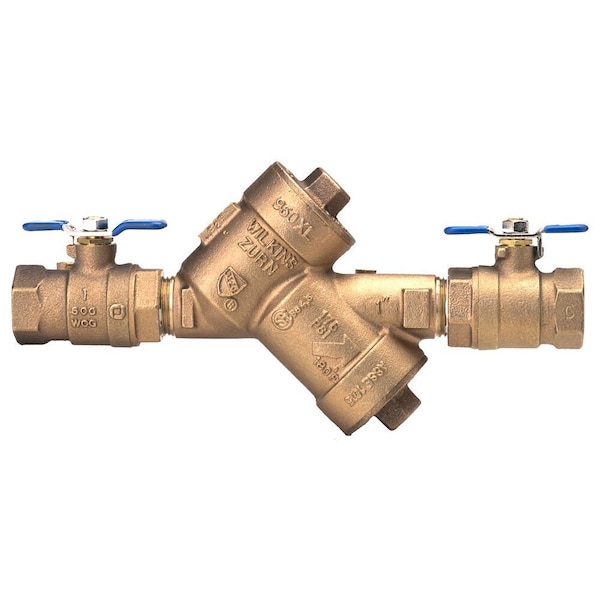

Double Check Backflow Preventer, Bronze
- Mfr # 1-950XL
- Zoro # G7737449
product price:Â
$
306.99
/ea
Free Shipping & Returns
Key Features
Width
10
Length
13
Features
Short lay length provides easy installation in compact spaces
Height
6.3
For Media
Potable Water
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 1-950XL
- Zoro #
- G7737449
- UPC #
- 612052040479
- Country of Origin
- United States
- Item
- W/Bv Non-Potable 1" 950Xl
- Features
- Short lay length provides easy installation in compact spaces
- For Media
- Potable Water
- Spring Material
- Stainless Steel
- Shut-Off Valve Included
- Ball Valve
- Mounting Orientation
- Horizontal
- Hazard Protection Level
- Low Hazard
- Connection Type - Side 2
- NPT
- Maximum Pressure - Steam
- 175 psi
- Flow
- 75 gpm
- Maximum Pressure - Operating
- 175 psi
- Seal Material
- Silicone
- Operating Temperature - Maximum
- 180 Degrees F
- Operating Temperature - Minimum
- 33 Degrees F
- Seat Material
- Silicone
- Body Material
- Bronze
- Includes Strainer
- No Strainer
- Connection Type - Side 1
- NPT
- Includes
- Double Check Backflow Preventer
- Includes Freeze Sensor
- No Freeze Sensor
- Includes Flood Protection
- No Flood Protection
- Backflow Preventer Type
- Double Check Assembly (DC)
- Standards
- ANSI B1.20.1, ASTM B 584, NYC MEA 426-89-M VOL 3
- Valve Series
- 950XL
Dimensions
- Width
- 10
- Length
- 13
- Height
- 6.3
- Overall Width
- 3.5 in
- Connection Size - Side 2
- 1 in
- Connection Size - Side 1
- 1 in
- Check Valve Length
- 7 in
- Overall Height
- 6.5 in
- Nominal Valve Size
- 1 in
- Overall Length
- 12.25 in
Description
Double Check Backflow Preventer,Bronze
