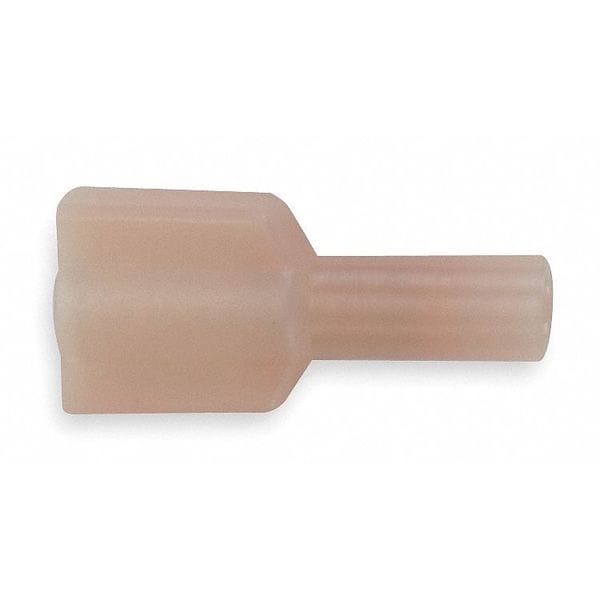

Male Disconnect, Red, 22-18AWG, PK50
Mfr # MNU18-250DMIX
Zoro # G1275312
product price: $66.29
/pk 50, $1.33/eaKey Features
Insulation
Full
Material
Plastic
Insulation Color
Red
Wire Range
22 to 18 AWG
Connection Type
Crimp
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MNU18-250DMIX
Zoro #
G1275312
UPC #
10051128587789
Country of Origin
United States
Dimensions
Overall Length
0.95 in
Tab Size
0.032 in x 0.250 in
Barrel Inside Dia.
0.065 in
Minimum Wire Size
22 AWG
Tab Width
0.25 in
Maximum Wire Size
18 AWG
Tab Thickness
0.032 in
Barrel Inside Diameter
0.065 in
Overall Width
0.44 in
Maximum Conductor Size
18 AWG
Connection Width
0.25 in
Pad Width
0.25 in
Diameter (D)
0.30 in
Male Tab Width (W')
0.250 in
Overall Diameter
0.3 in
Minimum Conductor Size
22 AWG
Maximum Insulation Outer Diameter
0.145 in
Barrel Outside Diameter
0.3 in
Description
Wire Disconnect, Contact Finish Tin, Contact Material Copper, Disconnect Style Quick Disconnect, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating Not Applicable, RoHS Compliant Yes, Seam Style Butted
