  6. Motor Lead Disconnect, Male, 2/0 AWG, Black

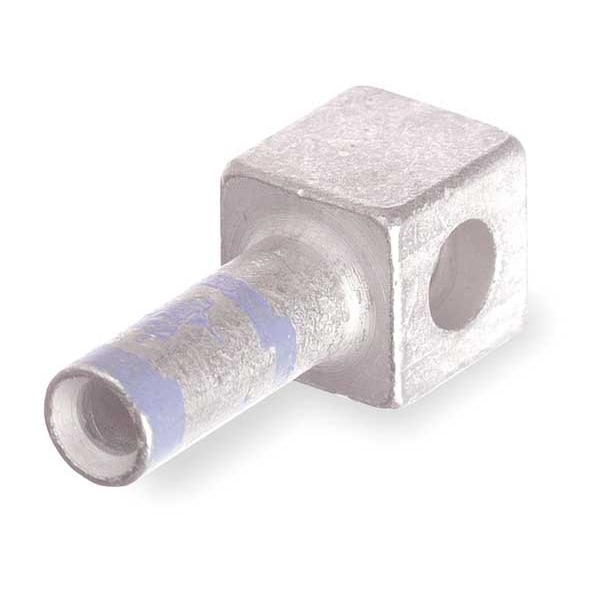

Abb Motor Lead Disconnect, Male, 2/0 AWG, Black MD20M-3 - main

Motor Lead Disconnect, Male, 2/0 AWG, Black

  • Mfr # MD20M-3

  • Zoro # G1935674

product price:  $50.15
/ea

Key Features

Style
Male (One Load)
Wire Gauge
2/0
Wire Size
2/0 AWG
Body Size
3
Material
Copper
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MD20M-3
Zoro #
G1935674
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Size
2/0 AWG
Body Size
3
Overall Length
1 19/32 in
Wire Strip Length
5/8 in
Plug Outside Dia.
0.37 in
Plug Length
1.09 in
Minimum Wire Size
2/0 AWG
Overall Depth
7/8 in
Overall Width
1 3/4 in
Maximum Wire Size
2/0 AWG
Strip Length
5/8 in
Strip Length (inches)
45054

Details

Item
Motor Lead Disconnect
Style
Male (One Load)
Wire Gauge
2/0
Material
Copper
Color Code
Black
Die Code
45
Connector Type
Pigtail Connector
Male/Female
Male
Standards
UL E9809
Features
Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.; Quick disconnect - no knife cutting of melted tape, eliminating the risk of accidental cutting of wire insulation, resulting motor downtime and installer exposure. Meets or exceeds electrical and mechanical performance of bolted commections.; Application Tools: TBM6, TBM6S, TBM5, TBM5S, TBM8, TBM8S
Number of Wires
2
Compatible Manufacturer Model Number
TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S
Termination Style
Pigtail
Connection Orientation
Pigtail
Maximum Operating Temperature
194 Degrees F
Gender
Male
Maximum Voltage
600 V
Plug OD
0.37 in
Finish
Tin Plated
F (inches)
0.5
E (inches)
0.88
D (inches)
1.75
Die Color
Black
Boot Insulation
MDBOOT3
Voltage Rating
600V
B (inches)
0.88
C (inches)
1.59
A (inches)
0.88
Application Tools
TBM6, TBM6S, TBM5, TBM5S, TBM8, TBM8S
Special Features
Fast, snap-together assembly offers maximum labor savings. Not need for nuts, bolts and washers or insulating tape - simply slide on reusable boot.
Type
Motor Lead Male Disconnect

Description

Motor Lead Disconnect, Body Size 3, Color Code Black, Die Code 45, Gender Male, Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 2/0 AWG, Maximum Wire Size 2/0 AWG, Termination Style Pigtail, Finish Tin Plated, Standards UL E9809, Compatible Grainger Part Number 3LT12, 3LT13, 3LT16, Compatible Manufacturer Model Number TBM5, TBM5S, TBM6, TBM6S, TBM8, TBM8S, Connection Orientation Pigtail, Connector Type Pigtail Connector, Number of Wires 2
