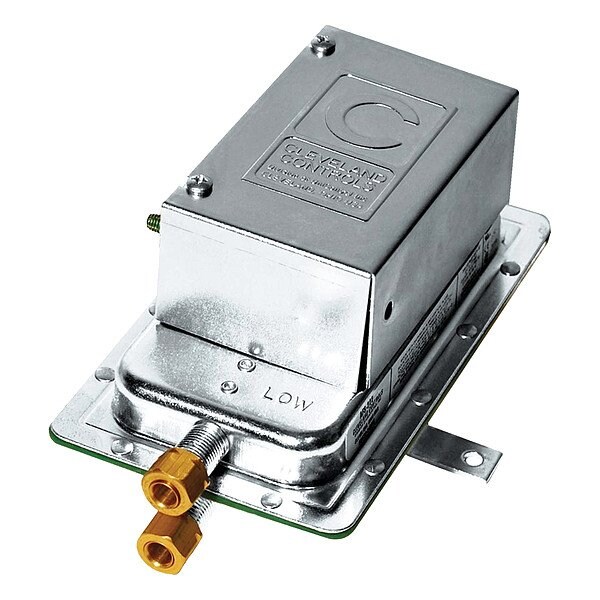

Air Pressure Switch
Mfr # AFS-460-DSS
Zoro # G623649591
product price:Â
$
713.99
/ea
Free Shipping & Returns
Key Features
Reset Type
Manual Reset
Maximum Operating Temperature
180 Degrees F
Minimum Operating Temperature
-40 Degrees F
Overall Width
4 7/16 in
Mounting Hole Diameter
3/16 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- AFS-460-DSS
- Zoro #
- G623649591
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Width
- 4 7/16 in
- Mounting Hole Diameter
- 3/16 in
- Overall Height
- 6 1/4 in
- Sample Line Connection Size
- 1/4 in
- Overall Depth
- 3 3/16 in
Description
Air Pressure Switch, Contact Form SPST - NC, Electrical Connection Type Screw Terminals, Electrical Rating 125, 250 or 277 V AC @ 15A/125 V DC @ 1/2A, 250 V DC @ 1/2 hp, 250 V DC @ 4A/125 V AC @ 1/4 hp, Housing Material Steel, Housing Material Finish Galvanized, Housing Type Conduit Box, Input Voltage 125V AC, 250V AC, or 277V AC, 125V DC, Maximum Differential Pressure Setting 12 in wc, Maximum Operating Temperature 180 Degrees F, Maximum Pressure Rating 0.5 psi
