Shop LEESON

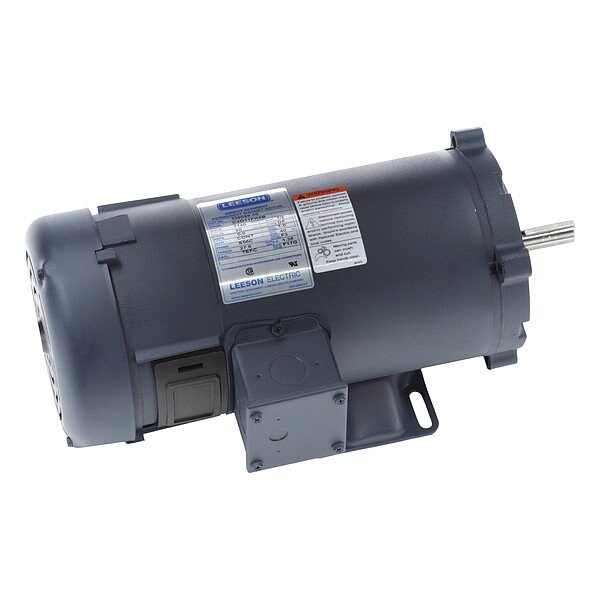

DC Permanent Magnet Motor, 56C

  • Mfr # 109099.00

  • Zoro # G411929683

product price:
$
880.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
1,140 RPM
Shaft Dia.
5/8 in
Voltage
90V DC
Frame
S56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
109099.00
Zoro #
G411929683
UPC #
691720347331
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Shaft Length
2 1/16 in
Bolt Circle Dia.
5 7/8 in
Stud Size
3/8"-16
Overall Length
14 5/16 in
Length Less Shaft
12 1/4 in
Mounting Stud Thread Size
3/8"-16
Frame Size
56C
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
5/8 in
Wire Rope Length
14 5/16 in

Details

HP
1/2
Nameplate RPM
1,140 RPM
Item
DC Permanent Magnet Motor
Voltage
90V DC
Frame
S56C
Motor Design
Permanent Magnet
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Rigid Base
Duty Cycle
Continuous
Full Load Amps
5.0 A
Motor Shaft Design
Keyed
Motor Thermal Protection
None
Ins. Class
F
RPM Range
1,101-1,200
Voltage Compatibility
90V DC
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Listed
Max. Ambient Temp.
104 Degrees F
Removable Base
Yes
Weight
40 lb
Nominal Efficiency
78 %
Motor Application
General Purpose
Motor Service Factor
1
Motor Sub Application
General Purpose
Insulation Class
F
Nameplate Voltage
90V DC
Motor Enclosure Type
Totally Enclosed Fan Cooled
Ambient Temperature - Maximum
104 Degrees F
Product Type
DC Motor
Includes
Removable Base
Application
General Purpose
Shaft Design
Keyed
Full Load Current
5.0 A
Nameplate Service Factor
1

Description

DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 1/2 HP, Nameplate RPM 1,140 RPM, Voltage 90V DC, 5.0 A Full Load Amps, S56C Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Shaft Length 2 1/16 in, Motor Shaft Design Keyed
