  9. Digital Clamp Meter, LCD, 600 A, 1.6 in (41 mm) Jaw Capacity

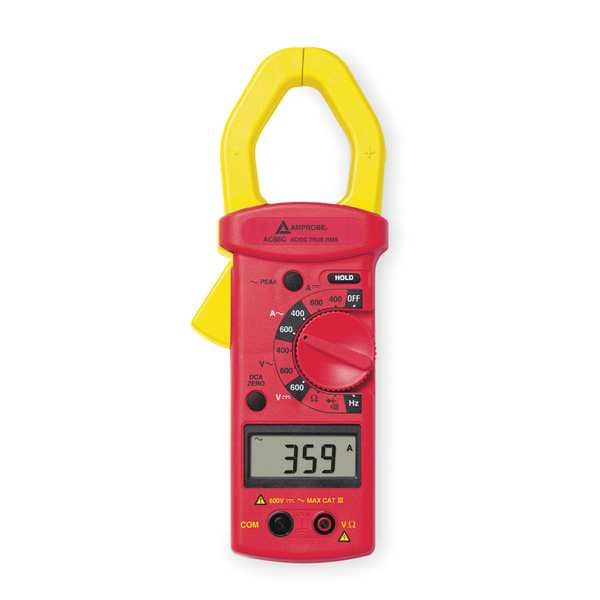

Amprobe Digital Clamp Meter, LCD, 600 A, 1.6 in (41 mm) Jaw Capacity AC68C - main

Digital Clamp Meter, LCD, 600 A, 1.6 in (41 mm) Jaw Capacity

  • Mfr # AC68C

  • Zoro # G1755765

product price: $515.71
/ea
Free Shipping & Returns

Key Features

Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
4,000
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AC68C
Zoro #
G1755765
UPC #
095969365505
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturers Warranty Length
1 yr
Maximum Conductor Size
1.30 in (35mm)
Battery Size
9V

Details

Item
Digital Clamp Meter
Digital/Analog
Digital
Max. AC Amps
600
Clamp Meter Jaw Style
Clamp On
Max. DC Volts
600 V
Max. Ohms
4,000
Jaw Capacity
1.6 in (41 mm)
Safety Rating
CAT II 600V, CAT III 300V
Display
LCD
Jaw Opening
1.57 in
Max. DC Amps
600
Max. AC Volts
600 V
Calibration Frequency
60 Hz
Battery Type
9V
Frequency Counter
20 KHz; 4 KHz
Includes
AC68C, Carrying Case, Test Leads
Peak Hold
Yes
Audible Continuity
Yes
Operating Temp.
32 Degrees to 104 Degrees F
Data Hold
Yes
Auto Power Off
Yes
AC Response
TRMS
Auto Ranging
Yes
Special Features
8 Functions/11 Ranges, DC Auto Zero, Low Battery Indication, Manual Function and Range Selection with Rotary Selector, Max Reading of 3999
Diode Test
Yes
AC Current Accuracy
+/-2.0% + 5 Digits
Counts
4,000
Data Logging
Yes
Maximum AC Voltage Measurement
600 V
Batteries Included
Yes
Intrinsically Safe
No
Basic DC Current Accuracy
+/-2 % of Reading + 5 Digits
DC Voltage Measurement Resolution
1 V
Maximum DC Voltage Measurement
600 V
Minimum AC Voltage Measurement
400 V
Parameters Measured
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance
Maximum AC Current Measurement
600 A
Waterproof
No
Basic AC Current Accuracy
+/-2 % of Reading + 5 Digits
Thermal Imaging
No
Maximum DC Current Measurement
600 A
Frequency Measurement Accuracy
+/-0.50% of Reading + 5 Digits
AC Voltage Measurement Resolution
0.1 V
AC Current Measurement Resolution
0.1 A
Maximum Frequency Measurement
20 kHz
Jaw Style
Clamp-Jaw
Basic DC Voltage Accuracy
+/-0.75% of Reading + 2 Digits
Instrument Counts
4,000
Dustproof
No
Minimum AC Current Measurement
400 A
Current Leakage Testing
No
Minimum Frequency Measurement
4 kHz
Frequency Measurement Resolution
4 kHz
Display Type
LCD
AC Response Calculation
TRMS
Minimum DC Current Measurement
400 A
Battery Access
Yes
Maximum Resistance Measurement
4 kiloohm
Bluetooth Compatible
No
Resistance Measurement Resolution
4 kiloohm
Resistance Measurement Accuracy
+/-1 % of Reading + 5 Digits
Basic AC Voltage Accuracy
+/-1.20% of Reading + 5 Digits
Removable Screen
No
DC Current Measurement Resolution
0.1 A
Calibration Certificate Included
No

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT II 600V, CAT III 300V, AC Response Calculation TRMS, Maximum AC Current Measurement 600 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 600 A, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No, Data Logging Yes, Thermal Imaging No, Removable Screen No
