Shop APPLETON ELECTRIC

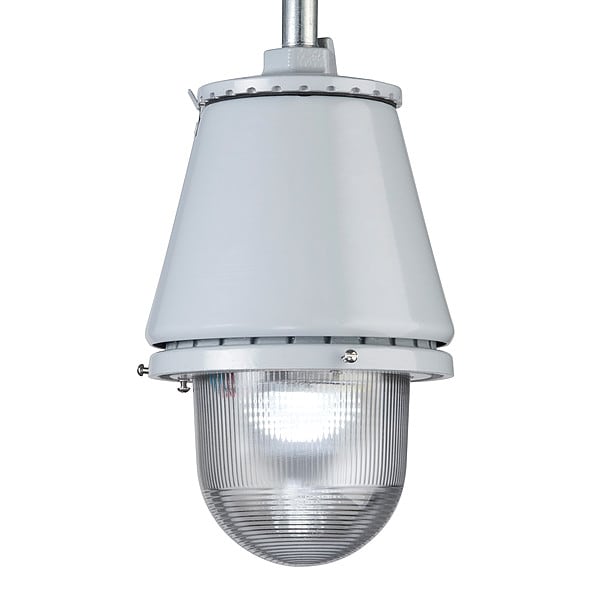

Explosion Proof Lighting Fixture, LED

  • Mfr # ALL2CBU
  • Zoro # G213326390
product price:
$
1,190.99
/ea
Free Shipping & Returns

Key Features

Standards
CEC, NEC
Lumens
3,200 lm
Lighting Technology
LED
Housing Material
Aluminum
Fixture Rated Life
60,000 hr
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ALL2CBU
Zoro #
G213326390
UPC #
781381239844
Country of Origin
Mexico
Item
Explosion Proof Lighting Fixture
Standards
CEC, NEC
Lumens
3,200 lm
Lighting Technology
LED
Housing Material
Aluminum
Fixture Rated Life
60,000 hr
Dimmable
No
Series
AL
Safety Rating
Class I, Division 1, Groups C, D, Class II, Division 1, Groups E, F, G, Class III
Lens Material
Glass
Fixture Voltage
120 to 277V AC
Emergency Battery Backup
No
Color Rendering Index
80
Housing Finish
Baked Epoxy Clad Finish
Max. Fixture Wattage
300 W
Color Temperature
5000 K
Lamp Type
Integrated LED
Fixture Ballast Type
Electronic
Bulbs Included
Yes
CA Title 24 Compliant
No
For Bulb Type
Integrated LED
BAA Compliant
No
UL/CSA/ETL Listed
CSA, UL Listed
Temperature Code
T6
Number of Bulbs
0
Max. Ambient Temp.
131 Degrees F
Min. Ambient Temp.
-13 Degrees F
Mounting Style
Ceiling, Suspended, Stanchion, Wall
Mounting Location
Ceiling, Pendant, Stanchion, Wall
Lumens per Watt
114 lm/W
Lumen Selectable
Not Selectable
Light Output
3,200 lm
Voltage
120/277V AC
Bulb Included
Yes
Maximum Fixture Wattage
300 W
Ambient Temperature - Maximum
131 Degrees F
Ambient Temperature - Minimum
-13 Degrees F
Dimming Method
No Dimming
Hazardous Location Rating
Class I, Div 1, Group C, D, Class II, Div 1, Group E, F, G
Fixture Type
Electronic

Description

5000K, 3,200 lm, 114 lm/W, Max. Fixture Wattage 300 W, Mounting Style Ceiling, Suspended, Stanchion, Wall, For Bulb Type Integrated LED, Bulb Included Yes, Dimmable No, AL
