  9. AirOprDiaphPmp, NPTF, BunaNe, 1/4", 13.1gpm
Shop All Diaphragm Pumps
Aro

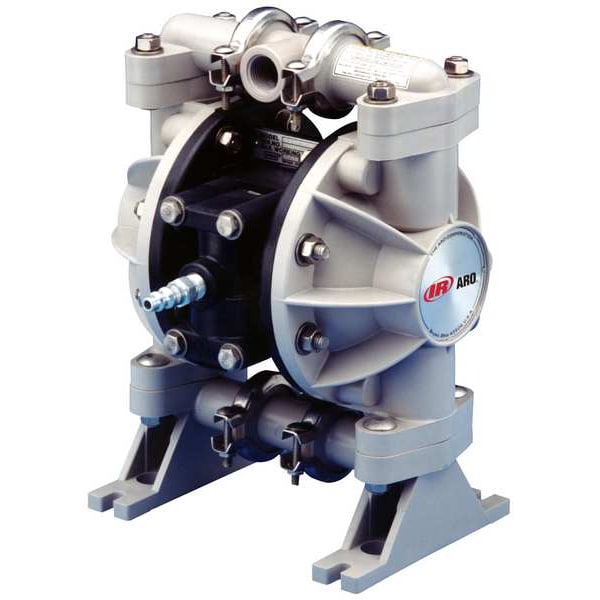

AirOprDiaphPmp, NPTF, BunaNe, 1/4", 13.1gpm

original price: $1,131.67
23% off
new price: $870.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Polypropylene
  • Diaphragm Material - Pumps Nitrile
  • Max. Flow 13 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 180 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1/2 in
Air Inlet Size 1/4 in NPTF
Height 11 21/64 in
Width 5 1/2 in
Manufacturers Warranty Length 5 yr
Length 8 7/16 in
Max. Dia. Solids 3/32 in
Air Intake Connection Size 1/4 in
Overall Height 11.3 in
Media Intake Connection Size 1/2 in
Media Discharge Connection Size 1/2 in
Solid Diameter (Maximum) 0.09 in
Overall Width 6.5 in
Overall Length 8.4 in

Details

Housing Material - Pumps Polypropylene
Diaphragm Material - Pumps Nitrile
Max. Flow 13 gpm
Item - Air Operated Pumps Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 180 Degrees F
Connection Style NPTF
Max. Operating Pressure 100 psi
Check Seat Material Polypropylene
Max. Flow GPM 13 gpm
Valve Type Duckbill
Includes Muffler
Manifold Connection Single Port
Diaphragm Material Buna-N
Standards ATEX Certified
Ball Material Nitrile
Item Air Operated Diaphragm Pump
Operating Pressure (Maximum) 100 psi
Air Consumption (Maximum) 20 scfm
NPSHr 27.5 ft of head
Flow Rate @ 60 psi 11.1 gpm
Flow Rate (Maximum) 13.1 gpm
Series Family Compact
Air Intake Pressure (Maximum) 100 psi
Series 66605X
Media Intake Location Center
Media Temperature (Minimum) 10 Degrees F
Non-Wetted Housing Material Plastic
Media Discharge Connection Type NPTF
Media Discharge Location Center
Media Temperature (Maximum) 180 Degrees F
Priming Self-Priming
Flow Rate @ 40 psi 9.2 gpm
Flow Rate @ 100 psi 13.1 gpm
Flow Rate @ 90 psi 12.9 gpm
Flow Rate @ 70 psi 12.1 gpm
Media Intake Connection Type NPTF
Wetted Housing Material Polypropylene
Valve Material Buna-N
For Use With Potable Systems No
Chemical Compatibility Antifreeze, Diesel Exhaust Fluid, Oil-Based Paint, Oils, Water
Flow Rate @ 50 psi 10.2 gpm
Nameplate Voltage N
Feet of Head (Maximum) 289 ft
Manifold Connection Type NPT
Flow Rate @ 80 psi 12.6 gpm
Air Intake Connection Type NPT
Viscosity (Maximum) 15,000 cps
Pump Assembly Type Bolt

Description

Air Operated Diaphragm Pump, Air Consumption (Maximum) 20 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Buna-N, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 13.1 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPTF, Media Intake Location Center
