Shop ARO

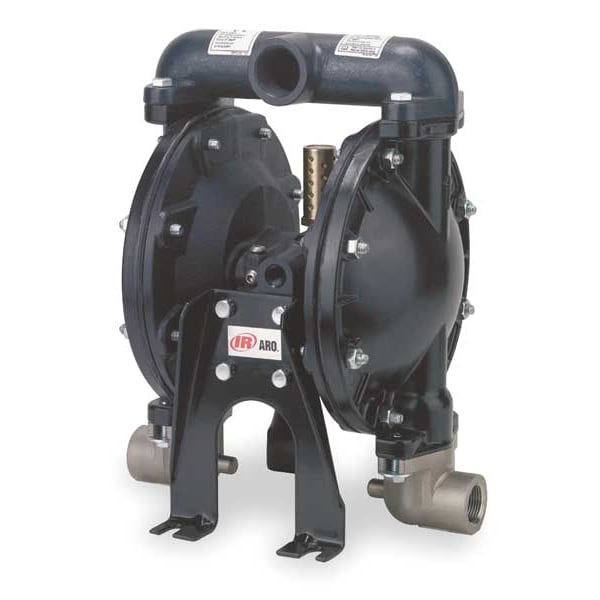

Double Diaphragm Pump, Aluminum, Air Operated, Buna-N, 35 gpm GPM 150 Degrees F

  • Mfr # 650715-C

  • Zoro # G1117654

product price:
$
1,311.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Acetal
Valve Type
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
650715-C
Zoro #
G1117654
UPC #
-
Country of Origin
United States
Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Acetal
Valve Type
Ball
Air Consumption (Maximum)
45 scfm
Air Intake Connection Type
NPT
Check Seat Material
Polypropylene
Diaphragm Material
Buna-N
Media Temperature (Maximum)
212 Degrees F
Operating Pressure (Maximum)
120 psi
Agency Compliance
ATEX, CE, REACH, RoHS
Pump Operation Type
Air
Self-Priming Wet
30 ft
Self-Priming Dry
20 ft
Inlet/Outlet
3/4 in
Standards
ATEX Certified
Media Discharge Connection Type
NPT
Flow Rate @ 80 psi
38.75 gpm
For Use With Potable Systems
No
Media Intake Connection Type
NPT
Air Intake Pressure (Maximum)
200 psi
Wetted Housing Material
Aluminum
Priming
Self-Priming
Flow Rate @ 60 psi
36 gpm
Flow Rate @ 100 psi
40 gpm
Media Discharge Location
Top
Flow Rate @ 50 psi
33.8 gpm
Flow Rate @ 70 psi
37.5 gpm
Series Family
Specialty
Flow Rate @ 90 psi
39.5 gpm
Flow Rate @ 120 psi
41 gpm
Nameplate Voltage
N
Feet of Head (Maximum)
270 ft
Chemical Compatibility
Antifreeze, Water
Flow Rate (Maximum)
35 gpm
Manifold Connection Type
NPT
Media Intake Location
Bottom
Viscosity (Maximum)
40,000 cps
Flow Rate @ 40 psi
30 gpm
Media Intake Port Configuration
Side
Mounting Hardware Material
Steel
Manifold Port Connection Type
Single Port
Series
Pro
Diaphragm Base Material
FKM
Wetted Body Material
Aluminum
Center Section Material
Aluminum
Media Discharge Port Configuration
Center Horizontal
Diaphragm Reinforcement
Fabric Reinforced
Material Conductivity
Conductive
Displacement Per Stroke
0.08 gal
Manifold Connection Standard
NPT
Includes Solenoid
No Solenoid Included
Fluid Chamber Assembly Type
Bolted

Description

Double Diaphragm Pump, Air Consumption (Maximum) 45 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Polypropylene, Diaphragm Material Buna-N, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 41 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3/4 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Media Intake Connection Size 3/4 in, Media Intake Connection Type NPTF, Media Intake Location Center
