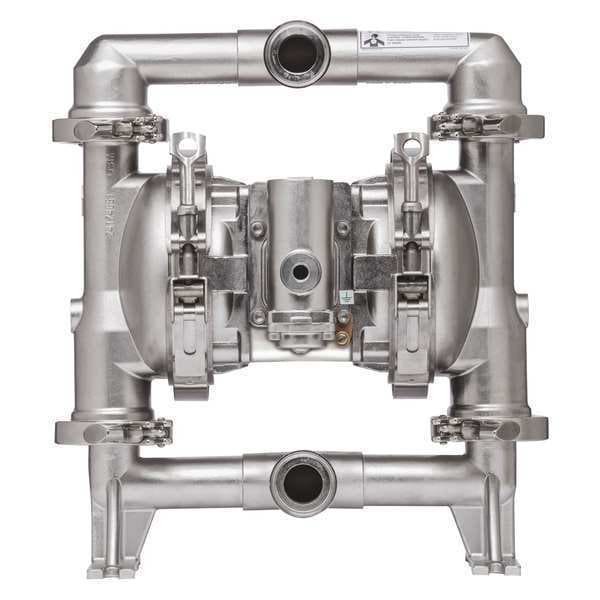

Double Diaphragm Pump, Stainless steel, Air Operated, Santoprene, 54 gpm GPM 225 Degrees F

  • Mfr # SD10R-CSS-SMM-B00

  • Zoro # G4312117

product price:  $4,337.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
SD10R-CSS-SMM-B00
Zoro #
G4312117
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1 in
Manufacturers Warranty Length
5 yr
Overall Height
16 in
Overall Length
14.5 in
Overall Width
14.5 in
Media Discharge Connection Size
1 in
Media Intake Connection Size
1 in
Solid Diameter (Maximum)
0.12 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Stainless Steel
Pump Assembly Type
Clamp
Manifold Connection
Single Port
Valve Material
Santoprene
Valve Type
Ball
Air Consumption (Maximum)
50 scfm
Air Intake Connection Type
NPT
Check Seat Material
316 Stainless Steel
Diaphragm Material
Santoprene
Media Temperature (Maximum)
212 Degrees F
Media Temperature (Minimum)
-40 Degrees F
Operating Pressure (Maximum)
120 psi
Pump Operation Type
Air
Standards
FDA Compliant
Agency Compliance
CE, REACH, RoHS, Sanitary (FDA Compliant)
Self-Priming Dry
15 ft
Inlet/Outlet
1 in
Media Intake Location
Bottom
Flow Rate @ 30 psi
30 gpm
Flow Rate @ 80 psi
49.5 gpm
Flow Rate @ 70 psi
46 gpm
Media Discharge Location
Top
Media Discharge Connection Type
Tri-Clamp
Feet of Head (Maximum)
235 ft
Air Intake Pressure (Maximum)
120 psi
Flow Rate @ 120 psi
54.5 gpm
Flow Rate @ 50 psi
40 gpm
Flow Rate @ 60 psi
43.6 gpm
For Use With Potable Systems
No
Flow Rate @ 90 psi
51.6 gpm
Series
EXP
Media Intake Connection Type
Tri-Clamp
Series Family
Sanitary
Flow Rate @ 40 psi
34 gpm
Viscosity (Maximum)
40,000 cps
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Water
Wetted Housing Material
316 Stainless Steel
Manifold Connection Type
Tri-Clamp
Nameplate Voltage
N
Priming
Self-Priming
Flow Rate (Maximum)
54.5 gpm
Flow Rate @ 100 psi
53 gpm
Media Intake Port Configuration
Center Horizontal
Mounting Hardware Material
Stainless Steel
Center Section Material
Polypropylene
Manifold Port Connection Type
Single Port
Includes Solenoid
No Solenoid Included
Diaphragm Reinforcement
Fabric Reinforced
Fluid Chamber Assembly Type
Clamp
Wetted Body Material
316 Stainless Steel
Media Discharge Port Configuration
Center Horizontal
Manifold Connection Standard
Tri-Clamp
Diaphragm Base Material
Santoprene
Material Conductivity
Non-Conductive
Surface Roughness
3.2 RA
Displacement Per Stroke
0.129 gal

Description

Double Diaphragm Pump, Air Consumption (Maximum) 50 scfm, Air Intake Connection Size 1 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 235 ft, Flow Rate (Maximum) 54.5 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Top, Media Intake Connection Size 1 in, Media Intake Connection Type Tri-Clamp
