  9. Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 12 GPM
Shop All Diaphragm Pumps
Aro

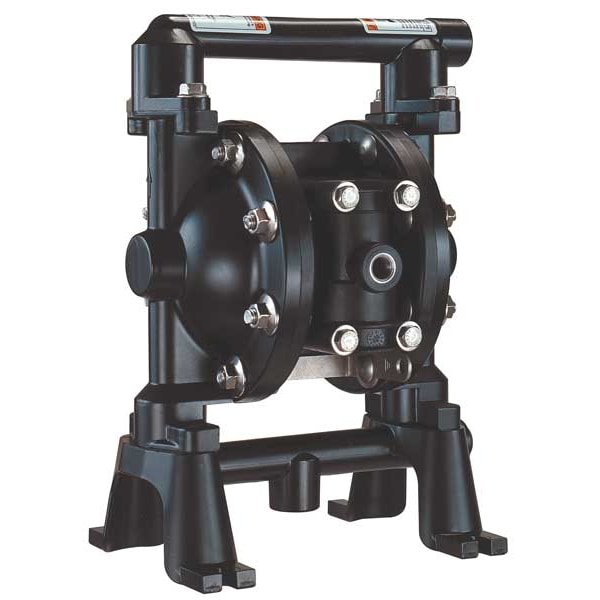

Double Diaphragm Pump, Aluminum, Air Operated, PTFE, 12 GPM

product price: $1,358.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Housing Material - Pumps Aluminum
  • Diaphragm Material - Pumps PTFE
  • Max. Flow 12 gpm
  • Pump Operation Type Air
  • Max. Temp - Pumps 200 Degrees F
See all product information

Product Information

Dimensions

Inlet/Outlet Size 1/2 in
Air Inlet Size 1/4 in FNPT
Manufacturers Warranty Length 5 yr
Width 8 3/32 in
Max. Dia. Solids 3/32 in
Height 11 3/4 in
Length 8 7/32 in
Overall Width 8.1 in
Overall Length 8.2 in
Overall Height 11.8 in
Air Intake Connection Size 1/4 in
Solid Diameter (Maximum) 0.09 in
Media Intake Connection Size 1/2 in
Media Discharge Connection Size 1/2 in

Details

Housing Material - Pumps Aluminum
Diaphragm Material - Pumps PTFE
Max. Flow 12 gpm
Item - Air Operated Pumps Double Diaphragm Pump
Pump Operation Type Air
Max. Temp - Pumps 200 Degrees F
Connection Style NPT
Agency Compliance ATEX, CE, REACH, RoHS
Body Material Aluminum
Valve Type Ball
Self-Priming Wet 15 ft
Ball Material PTFE
Self-Priming Dry 10 ft
Max. Temp. 200 Degrees F
Max. Flow GPM 12 gpm
Operation Type Air Operated
Diaphragm Material PTFE
Max. Operating Pressure 100 psi
Check Seat Material 316 Stainless Steel
Item Double Diaphragm Pump
Manifold Connection Single Port
Standards ATEX Certified
Feet of Head (Maximum) 255 ft
Non-Wetted Housing Material Plastic
Nameplate Voltage N
Media Temperature (Minimum) 40 Degrees F
Chemical Compatibility Alcohol, Antifreeze, Diesel Exhaust Fluid, Oil-Based Paint, Oils, Water
Pump Assembly Type Bolt
Flow Rate @ 90 psi 12.3 gpm
Mounting Hardware Material Stainless Steel
Media Discharge Connection Type NPTF
Series PD05X
Flow Rate @ 60 psi 11.7 gpm
Series Family Compact
For Use With Potable Systems No
Manifold Connection Type NPT
Media Intake Location Bottom, Side
Wetted Housing Material Aluminum
NPSHr 39 ft of head
Air Consumption (Maximum) 20 scfm
Media Temperature (Maximum) 225 Degrees F
Valve Material PTFE
Flow Rate (Maximum) 12.4 gpm
Flow Rate @ 70 psi 12.2 gpm
Viscosity (Maximum) 15,000 cps
Media Discharge Location Center, Side
Flow Rate @ 50 psi 10.9 gpm
Flow Rate @ 80 psi 12.3 gpm
Priming Self-Priming
Flow Rate @ 100 psi 12.4 gpm
Operating Pressure (Maximum) 100 psi
Flow Rate @ 40 psi 9.5 gpm
Air Intake Connection Type NPT
Media Intake Connection Type NPTF
Air Intake Pressure (Maximum) 100 psi

Description

Double Diaphragm Pump, Air Consumption (Maximum) 20 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material 316 Stainless Steel, Diaphragm Material PTFE, Feet of Head (Maximum) 255 ft, Flow Rate (Maximum) 12.4 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPTF, Media Discharge Location Center, Side, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPTF
