Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/4 in Pipe Size, 220V/50V, 240V/60V, High Flow
Mfr # 8262H208LF 240/60, 220/50
Zoro # G7718350
product price:
$
163.99
/ea
Free Shipping & Returns
Key Features
For Media
Aggressive Gases, Aggressive Liquids, Air, Ammonia, Biodiesel Fuel, Cryogenic Fluids, Fuel Oil, Hot Water, Inert Gases, Light Oil, Liquid Propane Gas, Natural Gas, Oxygen, Steam, Water
Valve Ways
2-Way
Valve Starting Configuration
Normally Closed
Nominal Pipe Size
1/4 in
Inlet Connection Type
NPTF
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 8262H208LF 240/60, 220/50
- Zoro #
- G7718350
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Nominal Pipe Size
- 1/4 in
- Overall Width
- 1-15/16 in
- Center Line Pipe Center Size
- 2-49/64 in
- Overall Height
- 3-1/8 in
- Overall Length
- 1-5/16 in
- Orifice Diameter
- 7/32 in
- Wire Rope Length
- 1 5/16 in
- Length
- 1 5/16 in
Description

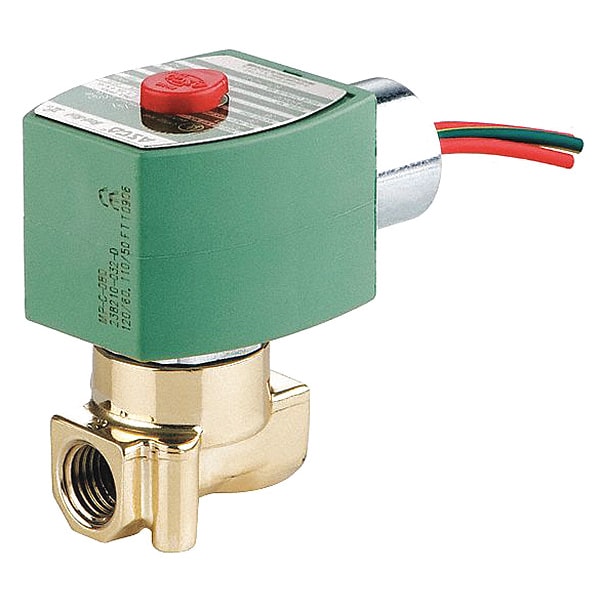

The ASCO 8262H208LF is a direct-acting, normally closed solenoid valve that controls flow of fluids and gases as described in the product specifications. Constructed with a brass body and NBR seals, this 2-way, 2-position valve has a nominal pipe size of 1/4 inch and features NPTF inlet and outlet connections. Rated for operation at 220 V 50 Hz and 240 V 60 Hz; coil insulation class F; power consumption 10.1 W. Media compatibility: aggressive gases and liquids, air, ammonia, biodiesel fuel, cryogenic fluids, fuel oil, hot water, inert gases, light oil, liquid propane gas, natural gas, oxygen, steam, and water (as specified in datasheet).
Key Features:
- Valve Design: 2-Way/2-Position, Normally Closed
- Material: Brass body with NBR sealing
- Connections: 1/4 in nominal pipe size, NPTF threads for inlet and outlet
- Operating Pressure: 0 to 100 psi for air, inert gas, light oil, and water
- Fluid Temperature Maximum: 180°F
- Coil: Includes coil, 10.1 W power consumption, Class F insulation
- Electrical Connections: 16 in leads
- Response Time: 1 second
- Mounting Orientation: Horizontal or Vertical
- Environmental and Enclosure Ratings: Indoor and outdoor use; NEMA 4X, IP65 enclosure protection
- Dimensions: Overall length 1-5/16 in, width 1-15/16 in, height 3-1/8 in
- Compliance: CSA, UL certified
