  6. General Purpose Farm Duty Motor, Capacitor-Start, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56YZ Frame

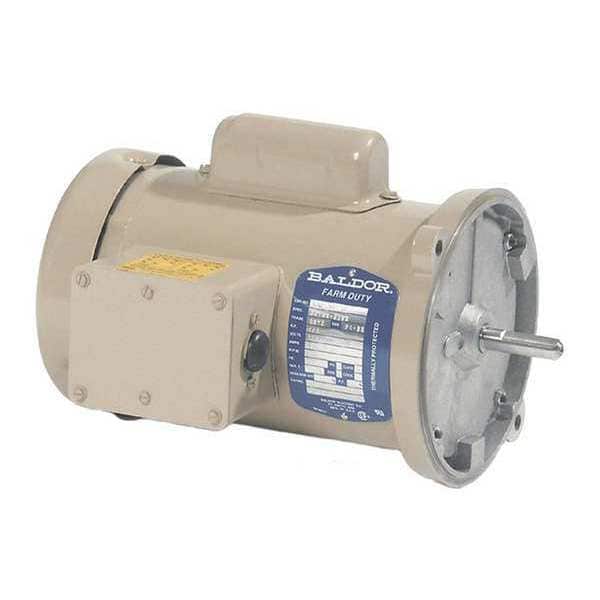

Baldor-Reliance General Purpose Farm Duty Motor, Capacitor-Start, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56YZ Frame ANFL3510M - main

General Purpose Farm Duty Motor, Capacitor-Start, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56YZ Frame

  • Mfr # ANFL3510M

  • Zoro # G8051806

product price:  $1,060.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ANFL3510M
Zoro #
G8051806
UPC #
781568122068
Country of Origin
United States

Dimensions

Overall Length
13 9/16 in
Length Less Shaft
11 1/2 in
Shaft Dia.
5/8 in
Shaft Length
2 1/16 in
Manufacturers Warranty Length
1 yr
Bolt Circle Dia.
7 1/4 in
Stud Size
None

Details

Item
General Purpose Farm Duty Motor
Motor Design
Capacitor-Start
Phase
Single
HP
1
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56YZ
Motor Service Factor
1.15
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
Vertical
Motor Shaft Design
Keyed
Motor Sub Application
General Purpose
Motor Shaft Rotation
Reversible
Standards
CSA, UR
Finish
Painted
Capacitor Required
Yes
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Ins. Class
F
Hz
60 Hz
Full Load Amps
6.5 A
Motor Bearings
Ball
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Nominal Efficiency
67 %
No. of Speeds
1
Mounting Stud Pattern
None
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Usable @ 208V
Yes
Full Load Amps @ 50Hz
13/6.5
Extended Thru-Bolts
No
HP @ 50Hz
.63
RPM @ 50Hz
1440
Usable @ 200V
Yes
Voltage @ 50Hz
115/208-230V AC
Weight
41 lb

Description

General Purpose Farm Duty Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.5 A, 56YZ Frame, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection Manual, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation Reversible, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Not Applicable
