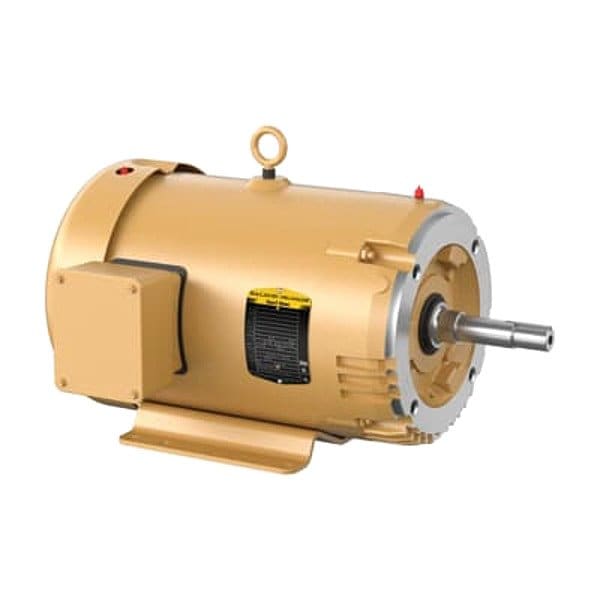

Baldor-Reliance General Purpose Motor, 215JM, Rigid Base EJMM3713T - main

General Purpose Motor, 215JM, Rigid Base

  • Mfr # EJMM3713T

  • Zoro # G7129967

product price:  $3,331.99
/ea
Additional $160.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
15
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
208V AC, 230V AC, 460V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
EJMM3713T
Zoro #
G7129967
UPC #
781568795842
Country of Origin
United States

Dimensions

Length Less Shaft
18 3/4 in
Shaft Length
3 5/8 in
Shaft Dia.
7/8 in
Overall Length
22 3/8 in
Shaft Diameter
7/8 in
Frame Size
215JM

Details

Item
AC Induction Motor
Motor Design
Three-Phase
HP
15
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
208V AC, 230V AC, 460V AC
Frame
215JM
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
CC Number
CC010A
Motor Enclosure Design
Totally Enclosed Fan Cooled
Inverter Rated
Yes
Motor Frame Material
Steel
Max. Ambient Temp.
40 Degrees C
Ins. Class
F
Motor Thermal Protection
None
Motor Mounting Position
Horizontal
Full Load Amps
17/34/36.8 A
Phase
Three
Motor Shaft Rotation
CCW
No. of Speeds
1
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Motor Bearings
Ball
Nominal Efficiency
91 %
Standards
CSA EEV, NEMA Premium, UR
Hz
60 Hz
Motor Application
General Purpose
Motor Shaft Design
Keyed
RPM @ 50Hz
3,500
HP @ 50Hz
15 hp
NEMA Design
A
Usable @ 208V
Usable at 208V
Removable Base
Regreasable
Duty Cycle
Continuous
Voltage @ 50Hz
190/380 V
Part Winding Start Capable
No
Full Load Amps @ 50Hz
40.8/20.4 A
Insulation Class
F
Inverter Rating
Inverter Rated
Frequency
60 Hz
Application
General Purpose
Mounting Position
Horizontal
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Full Load Current @ 60 Hz
17/34/36.8 A
Nameplate Horsepower @ 50 Hz
15 hp
NEMA Design Class
A
Efficiency Rating
NEMA Premium Efficiency
Bearing Lubrication Type
Regreasable
Full Load Current @ 50 Hz
40.8/20.4 A
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
988/990/991/978/981/983 RPM
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC

Description

AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 3,500, Frame 215JM, Voltage 208V AC, 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 17/34/36.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, 3,001-3,600, CSA EEV, NEMA Premium, UR
