Shop BALDOR-RELIANCE

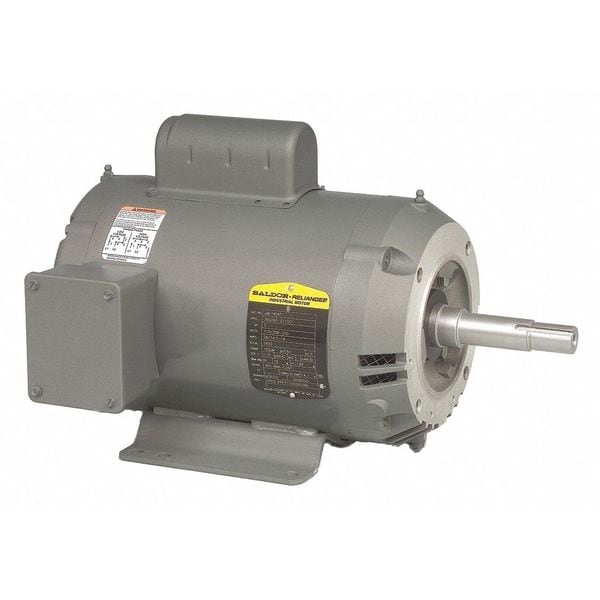

General Purpose Motor, 5 hp, 230V AC

  • Mfr # JML1409T

  • Zoro # G7033190

product price:
$
1,890.99
/ea
Additional $155.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Capacitor-Start/Run
HP
5 hp
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JML1409T
Zoro #
G7033190
UPC #
781568114643
Country of Origin
United States

Dimensions

Length Less Shaft
12 7/8 in
Shaft Dia.
7/8 in
Overall Length
16 1/2 in
Shaft Length
3 5/8 in
Shaft Diameter
7/8 in
Frame Size
184JM

Details

Item
Close-Coupled Pump Motor
Motor Design
Capacitor-Start/Run
HP
5 hp
RPM Range
3,001-3,600
Nameplate RPM
3,500
Voltage
230V AC
Frame
184JM
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
CC Number
CC031A
Max. Ambient Temp.
40 Degrees C
Full Load Amps
21/22.7 A
Motor Thermal Protection
None
Includes
Rodent Screen
Motor Bearings
Ball
No. of Speeds
1
Motor Shaft Design
Keyed
Ins. Class
F
Motor Mounting Position
Horizontal
Motor Application
General Application
Motor Enclosure Design
Open Dripproof
Motor Shaft Rotation
CCW
Voltage Compatibility
230V AC
Hz
60 Hz
Motor Frame Material
Steel
Phase
Single
Inverter Rated
No
Nominal Efficiency
80 %
Motor Sub Application
Close Coupled Pump Motor
Standards
CSA, UR
Removable Base
Regreasable Bearings
Usable @ 208V
Yes
NEMA Design
L
Part Winding Start Capable
No
Duty Cycle
Continuous
Frequency
60 Hz
Application
Pump
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
F
Shaft Thread Type
JM
Product Type
Pump Motor

Description

Close-Coupled Pump Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 HP, Nameplate RPM 3,500, No. of Speeds 1, Voltage 230V AC, Full Load Amps 21/22.7 A, 184JM Frame, Usable @ 208V Yes, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated No
