Shop CENTURY

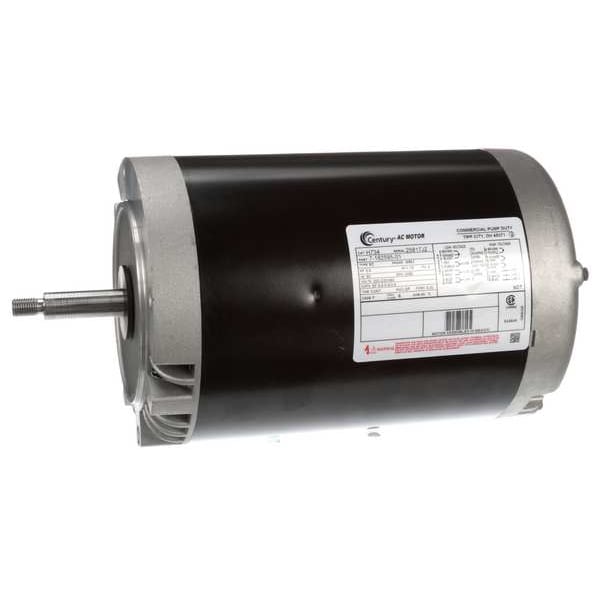

3-Phase General Purpose Pump Motor, 3 HP, 56J Frame, 200-230/460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # H734

  • Zoro # G700905459

product price:  $679.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
3,450
Voltage
200-230/460V AC
Motor Mounting Type
Face
Full Load Amps
9.8-9.6/4.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
H734
Zoro #
G700905459
UPC #
-
Country of Origin
China

Dimensions

Length Less Shaft
10 1/4 in
Overall Length
12 7/8 in
Shaft Dia.
5/8 in
Shaft Length
2 5/8 in
Bolt Circle Dia.
5 7/8 in
Height
6 7/16 in
Body Dia.
6.4 in
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
5/8 in
Frame Size
56J
Body Diameter
6.4 in
Wire Rope Length
12 7/8 in

Details

Item
General Purpose Pump Motor
HP
3
Nameplate RPM
3,450
Voltage
200-230/460V AC
Motor Mounting Type
Face
Full Load Amps
9.8-9.6/4.8 A
Frame
56J
Motor Bearings
Ball
Motor Service Factor
1.2
Motor Design
Three-Phase
Motor Enclosure Design
Open Dripproof
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
General Application
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
104 Degrees F
Motor Frame Material
Steel
Motor Shaft Design
Threaded
Standards
CSA Certified, UL Recognized
Weight
33 lb
Bearing Protection
Shaft Shields
Usable @ 200V
Usable at 200V
Shaft Material
Stainless Steel
Usable @ 208V
Not Usable at 208V
NEMA Design
None
Max. SF Amps
9.8-9.6/4.8 A
Duty Cycle
Continuous
Motor Thermal Protection
None
Full Load Current @ 60 Hz
9.8-9.6/4.8 A
Frequency
60 Hz
Application
Pump
Efficiency Rating
Standard Efficiency (IE1)
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.2
Number of Speeds
1
Service Factor Current
9.8-9.6/4.8 A
Product Type
Pump Motor
Insulation Class
B
Motor Enclosure Type
Open Drip Proof
Frame Material
Steel
Number of Wires
9
Shaft Design
Threaded
Bearing Protection Type
Shaft Shields

Description

The CENTURY - H734 is a General Purpose Pump Motor, falling under the category of 3-Phase AC Motors. This motor is designed to drive pumps by converting electrical energy into mechanical motion, which aids in moving fluids or gases. It's an essential component in industries such as manufacturing, HVAC and water treatment where fluid handling is crucial.

Key Features of the CENTURY - H734 General Purpose Pump Motor:

  • Bearing Protection: The motor features Shaft Shields that protect its bearings from potential damage caused by electrical currents, potentially improving its lifespan and operational efficiency.
  • Duty Cycle: With a continuous duty cycle, this motor is designed to operate for extended periods before requiring a rest period. This may suggest potential for high operational efficiency and endurance.
  • Frame: The 56J frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility and interchangeability.
  • Full Load Amps: At full capacity operation, it draws maximum current (9.8-9.6/4.8), crucial for determining power supply requirements and ensuring safe operation.
  • Horsepower (HP): With an output power of 3 HP, this motor is rated for use in various industrial applications that require such capacity.
  • Hertz (Hz): The operation at a frequency of 60 Hz may affect its speed and performance based on specific application requirements.
