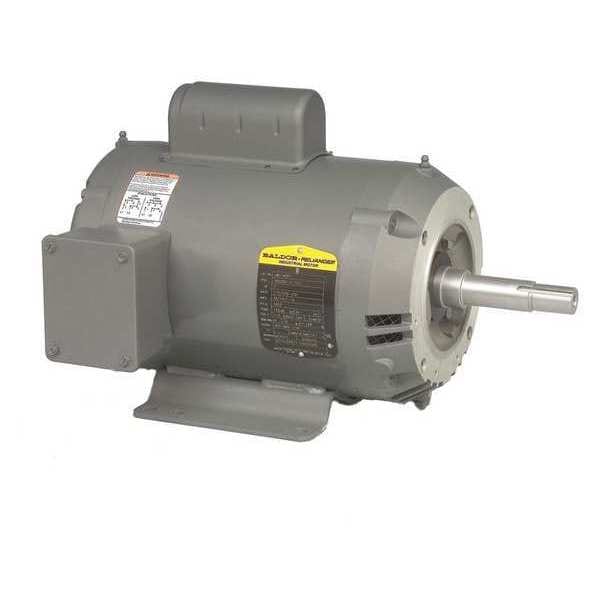

General Purpose Motor, 3 hp, 182JM Frame
Mfr # JML1406T
Zoro # G7074335
product price:Â
$
1,388.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Capacitor-Start
HP
3 hp
RPM Range
3,001-3,600
Nameplate RPM
3,450
Voltage
115V AC, 208V AC, 230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- JML1406T
- Zoro #
- G7074335
- UPC #
- 781568114629
- Country of Origin
- United States
Dimensions
- Shaft Length
- 3 5/8 in
- Shaft Dia.
- 7/8 in
- Length Less Shaft
- 12 7/8 in
- Overall Length
- 16 1/2 in
- Shaft Diameter
- 7/8 in
- Frame Size
- 182JM
Description
Close-Coupled Pump Motor, Single Phase, Motor Design Capacitor-Start, 3 HP, Nameplate RPM 3,450, No. of Speeds 1, Voltage 115V AC, 208V AC, 230V AC, Full Load Amps 14/14.7/28 A, 182JM Frame, Usable @ 208V Yes, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
