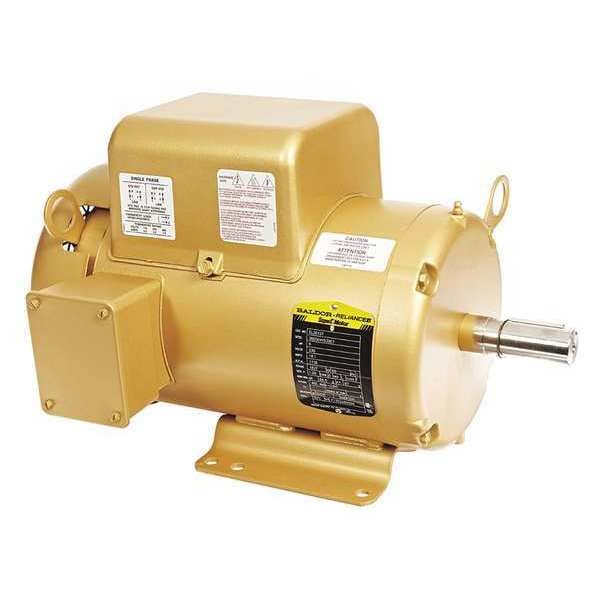

GeneralPurposeMotor, 5hp, 1800RPM, 184T
Mfr # EL3612T
Zoro # G7133467
product price: $2,322.99
/ea
Item requires special delivery charges. A $135.00 per item surcharge will be applied.
Key Features
Motor Design
Capacitor-Start/Run
Phase
Single
HP
5 hp
RPM Range
1,701-1,800
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
EL3612T
Zoro #
G7133467
UPC #
781568172742
Country of Origin
United States
Dimensions
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Length Less Shaft
15 5/16 in
Overall Length
18 1/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 19.1 A, 184T Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
