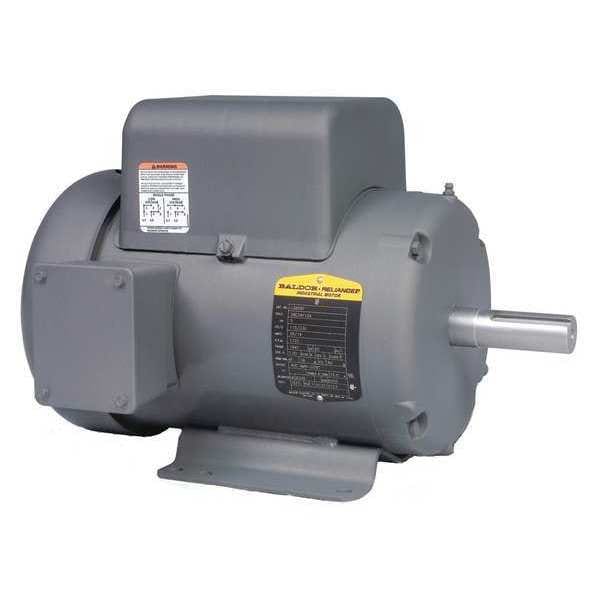

GeneralPurposeMotor, 5hp, 3600RPM, 184T
Mfr # L3608TM
Zoro # G7155541
product price:Â
$
1,784.99
/ea
Additional $170.00 delivery surcharge applies per item.
Key Features
Motor Design
Capacitor-Start/Run
Phase
Single
HP
5 hp
RPM Range
3,001-3,600
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- L3608TM
- Zoro #
- G7155541
- UPC #
- 781568100813
- Country of Origin
- United States
Dimensions
- Shaft Dia.
- 1 1/8 in
- Shaft Length
- 2 3/4 in
- Overall Length
- 18 1/16 in
- Length Less Shaft
- 15 5/16 in
- Shaft Diameter
- 1 1/8 in
- Frame Size
- 184T
- Wire Rope Length
- 18 1/16 in
- Length
- 18 1/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 19.5 A, 184T Frame, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
