Shop BALDOR-RELIANCE

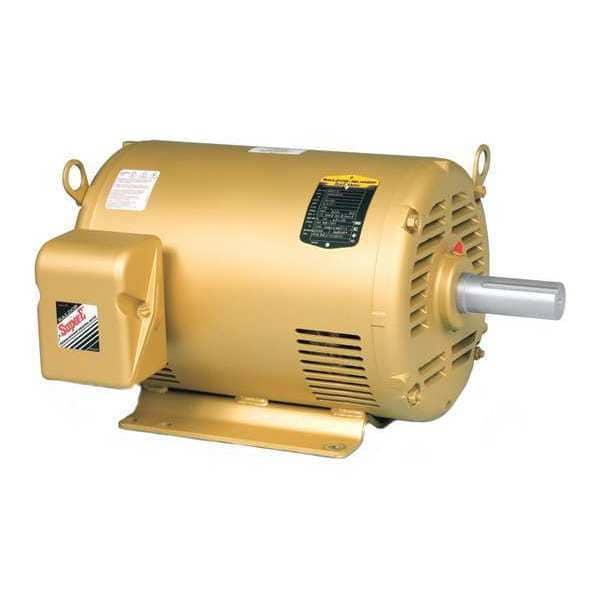

Three-Phase AC Induction Motor, 2 HP, 143T Frame, 200V AC Voltage, 1,765 Nameplate RPM

  • Mfr # EM3157T-8

  • Zoro # G8052199

product price:  $989.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1,765
Voltage
200V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6/6.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3157T-8
Zoro #
G8052199
UPC #
781568118894
Country of Origin
United States

Dimensions

Length Less Shaft
9 7/8 in
Overall Length
12 1/8 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Frame Size
143T
Shaft Diameter
7/8 in

Details

Item
AC Induction Motor
HP
2
Nameplate RPM
1,765
Voltage
200V AC
Motor Mounting Type
Rigid Base
Full Load Amps
6/6.5 A
Frame
143T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-208V AC, 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
86.5 %
Standards
CSA EEV, NEMA Premium, UR
CC Number
CC010A
Motor Thermal Protection
None
Inverter Rated
No
NEMA Design
B
Duty Cycle
Continuous
Removable Base
Regreasable
Part Winding Start Capable
No
Usable @ 208V
Usable at 208V
Usable @ 200V
Usable at 200V
Inverter Rating
Not Inverter Rated
NEMA Design Class
B
Number of Speeds
1
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Full Load Current @ 60 Hz
6/6.5 A
Nameplate Voltage @ 50 Hz
208/230/460V AC
Bearing Lubrication Type
Regreasable
Insulation Class
F
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Motor Enclosure Type
Open Drip Proof
Nameplate RPM @ 50 Hz
2,890 RPM
Mounting Position
Horizontal
Application
General Purpose
Bearing Type
Ball

Description

AC Induction Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 2 HP, Nameplate RPM 1,765, Frame 143T, Voltage 200V AC, 60 Hz Hz, Three Phase, Full Load Amps 6/6.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, 1,701-1,800, CSA EEV, NEMA Premium, UR
