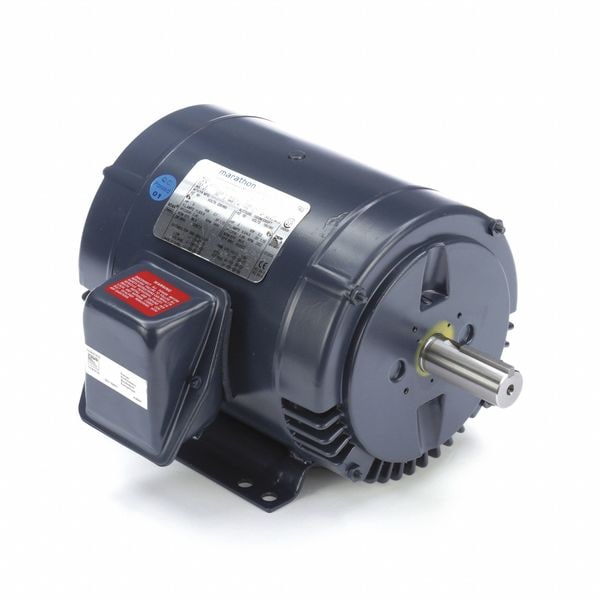

Marathon Three-Phase General Purpose Motor, 5 HP, 182T Frame, 208-230/460V AC Voltage, 3495 rpm Nameplate RPM 182TTDBD6001 - main

Three-Phase General Purpose Motor, 5 HP, 182T Frame, 208-230/460V AC Voltage, 3495 rpm Nameplate RPM

  • Mfr # 182TTDBD6001

  • Zoro # G5811145

product price:  $726.99
/ea
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
3495 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.2/6.6 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
182TTDBD6001
Zoro #
G5811145
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 1/2 in
Overall Length
12 1/4 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
1 yr
Frame Size
182T
Shaft Diameter
1 1/8 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
3495 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.2/6.6 A
Frame
182T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60/50 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CE, CSA (LR2025), UL (E49747)
CC Number
CC003A
Motor Thermal Protection
None
Inverter Rated
Yes
Includes
Conduit Box
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Usable @ 208V
Not Usable at 208V
Duty Cycle
Continuous
Weight
85 lb
NEMA Design
A
Nameplate Service Factor @ 60 Hz
1.15
NEMA Design Class
A
Frequency
60/50 Hz
Nameplate RPM @ 50 Hz
3,500 RPM
Full Load Current @ 60 Hz
13.2/6.6 A
Bearing Type
Ball
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
NEMA Premium Efficiency
Manufacturers Warranty
1 yr
Inverter Rating
Inverter Rated
Application
General Purpose
Shaft Design
Keyed
Motor Enclosure Type
Open Drip Proof
Number of Speeds
1
Insulation Class
F
Product Type
General Purpose Motor
Nameplate Voltage @ 50 Hz
230/460V AC

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 3495 rpm, Frame 182T, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 13.2/6.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 3001-3600
