  11. 1/4" Push Polypropylene Ball Valve Inline
Banjo 1/4" Push Polypropylene Ball Valve Inline LVPL025V - main

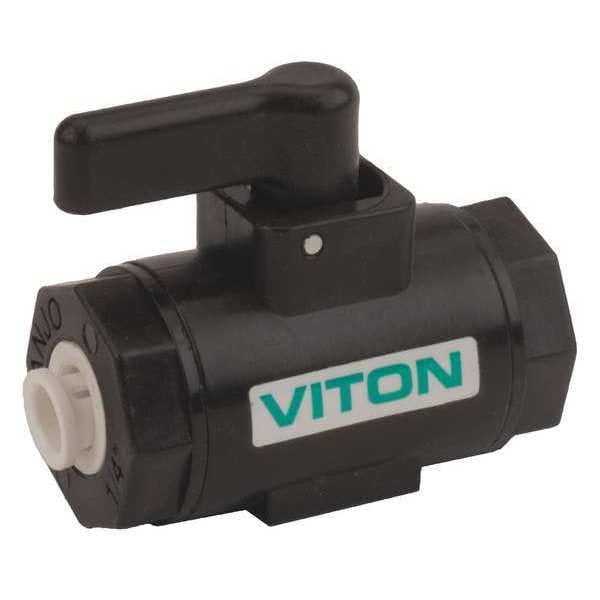

1/4" Push Polypropylene Ball Valve Inline

  • Mfr # LVPL025V

  • Zoro # G0331296

product price: $26.49
/ea

Key Features

Ball Material
Polypropylene
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
One-Piece
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LVPL025V
Zoro #
G0331296
UPC #
-
Country of Origin
United States

Dimensions

Pipe Size
1/4 in
Overall Length
2.21 in
Handle Height
1.22 in
Connection Size - Side 2
1/4 in
Nominal Valve Size
1/4 in
Connection Size - Side 1
1/4 in

Details

Ball Material
Polypropylene
Body Style
Inline
Ball Port Style
Standard Port
Valve Ways
2-Way
Valve Structure
One-Piece
For Media
Water
Connection Type
Push x Push
Item
Ball Valve
Stem Type
1-Piece Stem/Ball
Temp. Range
0 Degrees to 150 Degrees F
Max. Pressure
150 PSI CWP
Handle Material
Polypropylene
Seat Material
Viton
Body Material
Plastic
Handle Type
Lever
Stem Material
Polypropylene
Ball Valve Product Group
Manual
Features
High Quality Rubber O-Ring
Hose I.D.
1/4 in
Seal Material
FKM
Connection Gender - Side 2
Female
Connection Type - Side 2
Push
Connection Gender - Side 1
Female
Vacuum Service Rating
Not Available
Color - Valve Handle
Yellow
Operating Temperature - Minimum
0 Degrees F
Operating Temperature - Maximum
150 Degrees F
Connection Type - Side 1
Push
Handle - Locking
Non-Locking
Vented Ball Valve
Non-Vented
Maximum Pressure - Combustible Gas
Not Rated
3-A Standard Compliance
Not Rated
Coefficient of Volume (Cv)
Not Available
Maximum Pressure - Steam
Not Rated

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Water, Valve Construction One-Piece, Nominal Valve Size 1/4 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 150 psi, Maximum Pressure - Steam Not Rated, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Standard Port, Handle - Locking Non-Locking
