  11. Bolt Bulkhead Tank Flange, EPDM, 5 1/2"L
Shop All Bulkhead Tank Fittings
Banjo

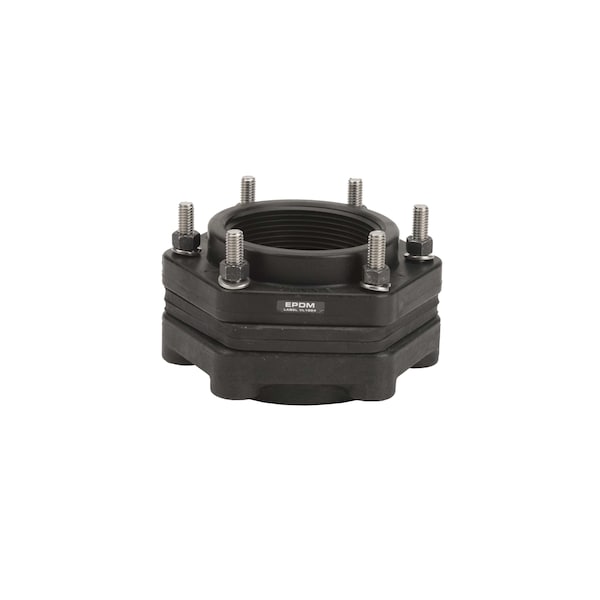

Bolt Bulkhead Tank Flange, EPDM, 5 1/2"L

product price: $71.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material Polypropylene
  • Required Hole Size 3 13/32 in
  • Gasket Material EPDM
  • Color Black
  • Maximum Operating Temperature 150 Degrees F
See all product information

Product Information

Dimensions

Required Hole Size 3 13/32 in
Overall Length 5 1/2 in
Inside Connection Size 3 in
Outside Connection Size 3 in

Details

Item Edit Bolted Bulkhead Tank Flange
Body Material Polypropylene
Gasket Material EPDM
Color Black
Maximum Operating Temperature 150 Degrees F
Number of Bolt Holes 6
Outside Connection Gender Female
Inside Connection Type NPT
Maximum Wall Thickness 25/32 in
Minimum Operating Temperature -20 Degrees F
Bolt Material Stainless Steel
Fitting Material Finish Glass Reinforced
Outside Connection Type NPT
Fitting Material Polypropylene
For Tank Shape Curved, Flat
Mount Type Bolt-On
Maximum Operating Pressure 150 psi
Inside Connection Gender Female

Description

Edit Bolted Bulkhead Tank Flange, Fitting Material Polypropylene, Fitting Material Finish Glass Reinforced, Fitting Material Grade Not Applicable, For Tank Shape Curved, Flat, Gasket Material EPDM, Inside Connection Gender Female, Inside Connection Size 3 in, Inside Connection Type NPT, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 150 Degrees F, Minimum Operating Temperature -20 Degrees F, Number of Bolt Holes 6, Outside Connection Gender Female, Outside Connection Size 3 in
