Banjo

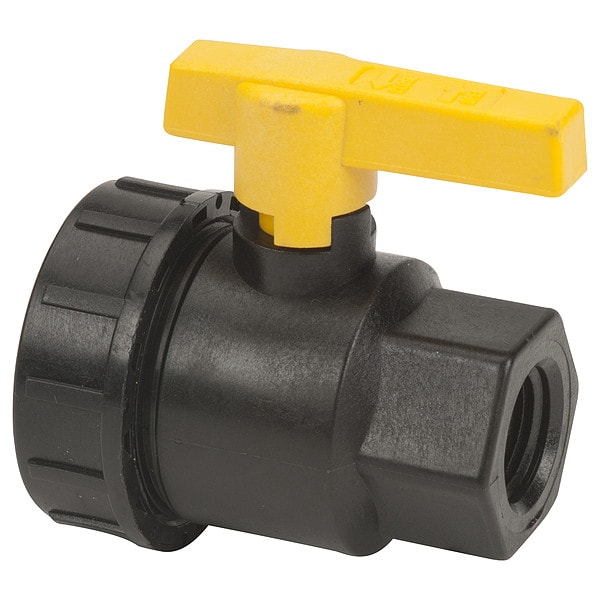

Manual 2-Way Ball Valve, NPT, Polypro


product price: $14.55
/ea

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pipe Size 1/2 in
  • Body Material Polypropylene
  • Body Style Single Union
  • Seal Material EPDM
  • Max. Pressure 300 psi
See all product information

Product Information

  • Brand Banjo
  • MFR # UV050FP
  • Zoro # G908447027
  • UPC #
    0791206012897
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 1/2 in
Overall Length 3.13 in
Handle Length 1.72 in
Nominal Valve Size 1/2 in
Connection Size - Side 1 1/2 in
Connection Size - Side 2 1/2 in
Handle Height 1 in

Details

Body Material Polypropylene
Body Style Single Union
Seal Material EPDM
Max. Pressure 300 psi
Stem Material Polypropylene
Seat Material PTFE
Handle Type Lever
Ball Material Polypropylene
Handle Material Polypropylene
Stem Type Not Available
Port Full
Features Double O-Rings in Stem Area for Extra Sealing Protection, EPDM O-Rings to Handle Most Fertilizers and Many Chemicals, Interlocking Body and End Plate to Allow Easy Thread Connection when Installing Valves
Item Manual Two-Way Ball Valve
Body Seal Material PTFE
Ball Port Style Full Port
Coefficient of Volume (Cv) Not Available
Handle - Locking Non-Locking
For Media Corrosive Chemicals, Water
Connection Gender - Side 2 Female
Connection Type - Side 1 NPT
Vented Ball Valve Non-Vented
Color - Valve Handle Yellow
Connection Gender - Side 1 Female
Valve Ways 2-Way
Valve Body Style Straight
Maximum Pressure - Operating 300 psi
Operating Temperature - Minimum 0 Degrees F
Operating Temperature - Maximum 150 Degrees F
Connection Type - Side 2 NPT
3-A Standard Compliance Not Rated
Vacuum Service Rating Not Available
Valve Construction Three-Piece
Maximum Pressure - Combustible Gas Not Rated

Description

Manual Two-Way Ball Valve, Body Material Polypropylene, For Media Corrosive Chemicals, Water, Valve Construction Three-Piece, Nominal Valve Size 1/2 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 300 psi, Maximum Pressure - Steam Not Applicable, Maximum Pressure - Combustible Gas Not Rated, Vacuum Service Rating Not Available, Ball Material Polypropylene, Ball Port Style Full Port
