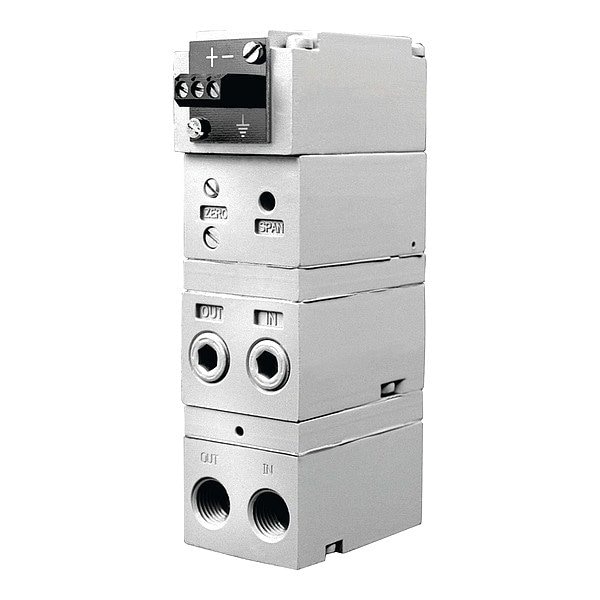

Electro-Pnuematic Transducers
Mfr # 969710201
Zoro # G316476725
product price:Â
$
697.99
/ea
Free Shipping & Returns
Key Features
Operating Temperature - Minimum
-20 Degrees F
Nominal Pressure Range - Minimum
3 psig
Air Connection Size
1/4 in
Input Current Signal Minimum
4 mA
Overall Width
1 1/2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 969710201
- Zoro #
- G316476725
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Air Connection Size
- 1/4 in
- Overall Width
- 1 1/2 in
- Overall Depth
- 3 3/16 in
- Overall Length
- 3 11/16 in
- Wire Rope Length
- 3 11/16 in
- Length
- 3 11/16 in
Details
- Item
- Electro-Pnuematic Transducer
- Operating Temperature - Minimum
- -20 Degrees F
- Nominal Pressure Range - Minimum
- 3 psig
- Input Current Signal Minimum
- 4 mA
- Application
- Actuators, Positioners, Valves
- Mounting Style
- DIN-Rail; Inline; Manifold; Panel; Pipe
- Standards
- CE Listed
- Input Signal Type
- Current
- Input Current Signal Maximum
- 20 mA
- Nominal Pressure Range - Maximum
- 15 psig
- Product Type
- Electro-Pneumatic Transducer
- Operating Temperature - Maximum
- 150 Degrees F
- Operating Pressure - Maximum
- 100 psig
- Air Connection Type
- NPT
- Control Air Pressure
- 20 psig
- Air Consumption
- 3 scfh
Description
Electro-Pnuematic Transducer, Air Connection Size 1/4 in, Air Connection Type NPT, Air Consumption 3 scfh, Application Actuators, Positioners, Valves, Control Air Pressure 20 psig, Input Current Signal Maximum 20 mA, Input Current Signal Minimum 4 mA, Input Signal Type Current, Input Voltage Signal - Maximum Not Applicable, Input Voltage Signal - Minimum Not Applicable, Mounting Style DIN-Rail; Inline; Manifold; Panel; Pipe, Nominal Pressure Range - Maximum 15 psig
