Shop BENDPAK

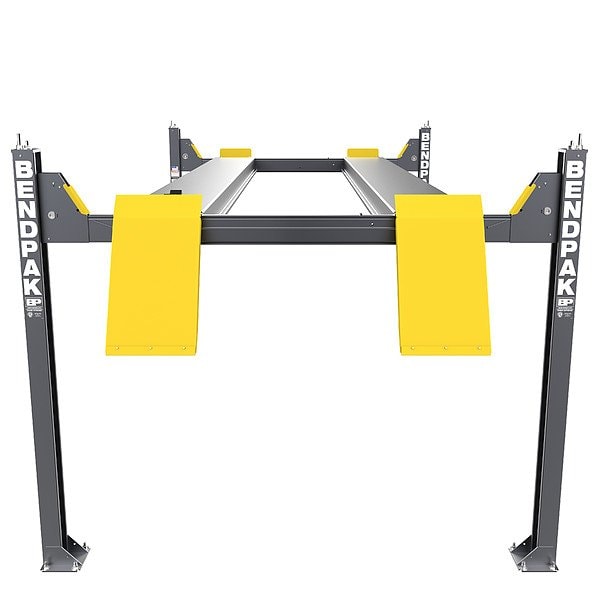

heavy duty 4 post lift

  • Mfr # HDS14XT

  • Zoro # G023781655

product price:
$
13,763.99
/ea
Additional $300.00 delivery surcharge applies per item.
See details

Key Features

Overall Width
130 in
Features
Customizable Power Unit Location, Extended 227.5-Inch Runways for Large Vehicles, Extended Approach Ramps Suitable for Low-Clearance Vehicles, Fully Enclosed Lifting Cables, Safety Locks, and Sheaves, Heavy-Duty 1/2-Inch Aircraft Cables with 1.75-Inch Roller Axles, Higher Maximum Lifting Height of 89.5 Inches, Independent Backup Slack-Cable Safety Latches, Internal Anti-Sway Slider Blocks in each Column, Multi-Position Safety Locks in each Column, Oversized 10.5-Inch Diameter Cable Sheaves to Reduce Cable Fatigue, Runways Equipped with Rail-Kit for Optional Accessories, Single Hydraulic Cylinder Beneath the Runway
Overall Height
104 in
Voltage
220V AC
Minimum Arm Width
41 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HDS14XT
Zoro #
G023781655
UPC #
849672035855
Country of Origin
China

Dimensions

Overall Width
130 in
Overall Height
104 in
Minimum Arm Width
41 1/2 in
Platform/Lift Arm Length
227 1/2 in
Maximum Arm Width
34 1/2 in
Minimum Lift Height
7 1/2 in
Maximum Lift Height
89 1/2 in
Overall Length
272 in
Length
272 in

Details

Item
Heavy Duty 4 Post Lift
Features
Customizable Power Unit Location, Extended 227.5-Inch Runways for Large Vehicles, Extended Approach Ramps Suitable for Low-Clearance Vehicles, Fully Enclosed Lifting Cables, Safety Locks, and Sheaves, Heavy-Duty 1/2-Inch Aircraft Cables with 1.75-Inch Roller Axles, Higher Maximum Lifting Height of 89.5 Inches, Independent Backup Slack-Cable Safety Latches, Internal Anti-Sway Slider Blocks in each Column, Multi-Position Safety Locks in each Column, Oversized 10.5-Inch Diameter Cable Sheaves to Reduce Cable Fatigue, Runways Equipped with Rail-Kit for Optional Accessories, Single Hydraulic Cylinder Beneath the Runway
Voltage
220V AC
Number of Lift Positions
18
Load Capacity
7 ton
Distance Between Columns
120 in
Minimum Operating Pressure
30 psi
For Lifting
SUVs, Trucks
Lift Type
4-Post Alignment Lift
Number of Wheels
0
Maximum Distance Between Columns
120 in
Standards
ALI Certified
For Alignment Wheelbase
160 in

Description

Heavy Duty 4 Post Lift, Load Capacity 7 ton, Minimum Lift Height 7 1/2 in, Maximum Lift Height 89 1/2 in, For Lifting SUVs, Trucks, Standards ALI Certified, Distance Between Columns 120 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
