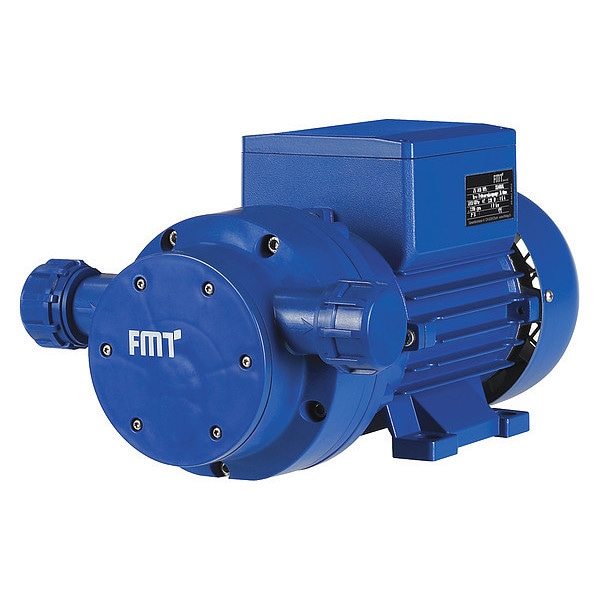

Electric Operated Tote Pump, 120VAC, 60 Hz

product price: $527.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Use With Diesel Exhaust Fluid
  • Housing Material Die-Cast Aluminum
  • Includes 120V ELECTRIC TOTE DEF PUMP ONLY
  • Inlet Size 1" NPT
  • Motor Type Diaphragm
See all product information

Product Information

Dimensions

Inlet Size 1" NPT
Length 13"
Discharge Size FPT (In.) 1
Discharge Tube Outlet ID Size 3/4"
Height 7"
Width 7"
Manufacturers Warranty Length 3 yr.
Suction Tube Outlet O.D. Size 3/4"
Discharge Tube Outlet OD Size 3/4"
Hose Inside Dia. 3/4 in
Outlet Size 1"
Suction Tube Outlet I.D. Size 3/4"
Cord Length 63 in
For Container Size 275 gal, 330 gal

Details

For Use With Diesel Exhaust Fluid
Housing Material Die-Cast Aluminum
Includes 120V ELECTRIC TOTE DEF PUMP ONLY
Motor Type Diaphragm
Voltage 120VAC
Item Electric Operated Tote Pump
Clamp Style Pinch
Phase 1
Max. Pressure 23 psi
Suction Tube Type Constant
Full Load Amps 2.8 A
Duty Continuous Operation
Wetted Materials Polyethylene, Stainless Steel
Self-Priming Yes
Hose Material EPDM
Max. Liquid Temp. 311 Degrees F
GPM 8 to 10
Features INTEGRATED INTERNAL BYPASS
Hz 60
DEF Compatible Yes
Max. Head 10 ft.
Piston Material Stainless Steel
Motor RPM 3,450 RPM
HP 1/2
Max. Viscosity 5 cps
Agency Compliance CSA
Metered No
Thermal Protection Yes
Discharge Tubing Material EPDM
Max. GPM for Water 10
Discharge Tube Outlet OD 3/4 in
Power Source Electric
Food Grade No
Runs Dry No
Includes Suction Tube Yes
Variable Speed No
For Container Type Tote
Motor Enclosure PA6 / GF30
Discharge Tube Outlet ID 3/4 in
Max. Flow Rate 10 gpm
Includes Discharge Hose No
Pump Connection OD 3/4 in
Includes Nozzle No
Compatible Chemicals DEF
Housing Material - Pumps Die-Cast Aluminum
Discharge Connection Type BSP
Pump Connection ID 3/4 in
Max. Fluid Temp. 311 Degrees F
Includes Bung Adapter No
Max. Head - Pumps 10 ft
For Media Type DEF
Diesel Exhaust Fluid Compatible Yes
Duty Cycle Continuous
Frequency (Hz) 60 Hz
Min. Fluid Temp. 12 Degrees F
Number of Phases 1
Seal Material EPDM
Pump Connection Type BSP
Motor HP 1/2 hp
Max. Outlet Pressure 23 psi
Explosion Proof No
Grease NT
Gear Lube NT
Rated Voltage 120V AC

Description

Electric Operated Tote Pump, Hose Inside Dia. 3/4 in, Max. Outlet Pressure 23 psi, For Use With Diesel Exhaust Fluid, Rated Voltage 120V AC, Pump Connection ID 3/4 in, Cord Length 63 in, Includes Bung Adapter No, Runs Dry No, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes, Compatible Chemicals DEF, Discharge Connection Type BSP, Features INTEGRATED INTERNAL BYPASS, Includes Nozzle No, Pump Connection Type BSP
