Shop All Flowmeters
Brooks

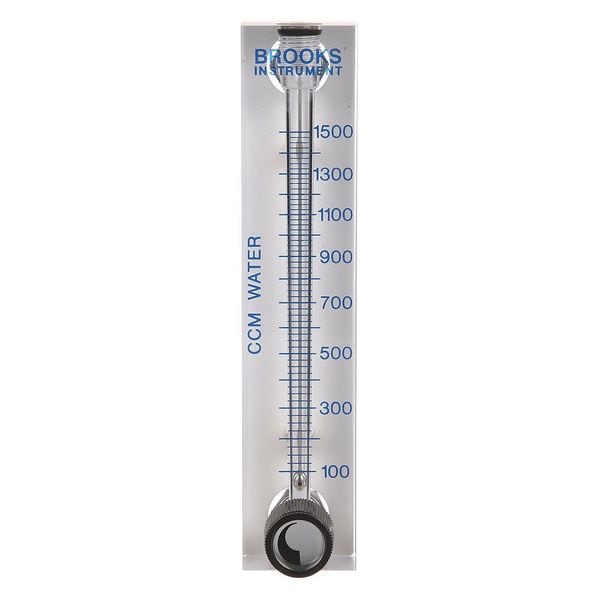

Meter, Water, 1500cc/Min

product price: $83.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Variable Area
  • Housing Material Acrylic
  • For Pipe Size 1/8 to 1 in
  • Connection Size 1/8 in
  • Flow Material Water
See all product information

Product Information

  • Brand Brooks
  • MFR # 2520A4L53SVVT
  • Zoro # G2578886
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1/8 to 1 in
Connection Size 1/8 in
Depth 1 1/8 in
Height (In.) 6-1/2
Height 6 1/2 in
Center-Center Insert Size 3 1/2 in
Width (In.) 1-3/8"
Connection Size (In.) 1/8 FNPT
Width 1 3/8 in
Center-Center Fitting Size 5 1/2
Overall Width 1.4 in
Overall Length 1.1 in
Overall Height 6.5 in

Details

Item Mechanical Flowmeter
Type Variable Area
Housing Material Acrylic
Flow Material Water
Connection Type FNPT
Max. Pressure 100 psi
Wetted Materials Clear Acrylic, Stainless Steel, Viton
Flow Range 100 to 1500 ccm
Fitting Stainless Steel
Fluid Temp. Range 40 Degrees to 150 Degrees F
Includes Valves
Seal Material Viton
Flow Range @ CCM 100 to 1500
Insert 10-32 Threaded Brass
Max. Pressure (PSI) 100
O-Ring Viton
Accuracy (%) +/-3
Flow Range @ CCM of Water 100 to 1500
Max. Temp. (F) 150
Application For Measuring Liquid or Gas Flows in Air Sampling Equipment, Chromatography Systems, Desalinization Equipment, Gas Analyzers, Medical Systems, Photo Equipment, Water Treatment and Distribution and in Aquaculture System
Output Type Scaled Pulse
Standards International Calibration Certificate (ICC), Pressure Equipment Directive (97/23/EC), RoHS
Product Type Machined Flow Meter
Includes Pressure Gauge No
O-Ring Material Viton
Mounting Orientation Vertical
Accuracy 3%
Flow Rate - Maximum 1,500 cfm
Flowmeter Type Variable Area
Media Temperature - Maximum 150 Degrees F
Wetted Material Acrylic, Stainless Steel, Viton
Operating Pressure - Maximum 100 psig
Includes Totalizer No
Flow Rate - Minimum 100 cfm
Includes Flow Rate Adjustment Knob Yes
Media Temperature - Minimum 40 Degrees F
Compatible Flow Material Water
Unit Of Measure Liters

Description

Mechanical Flowmeter, Product Type Machined Flow Meter, Flowmeter Type Variable Area, Accuracy 3 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum 40 Degrees F, Voltage - Maximum Not Applicable, Housing Material Acrylic, Rotor Material Not Applicable, O-Ring Material Viton, Seal Material Viton, Shaft Material Not Applicable, Wetted Material Acrylic, Stainless Steel, Viton

Restrictions

  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
