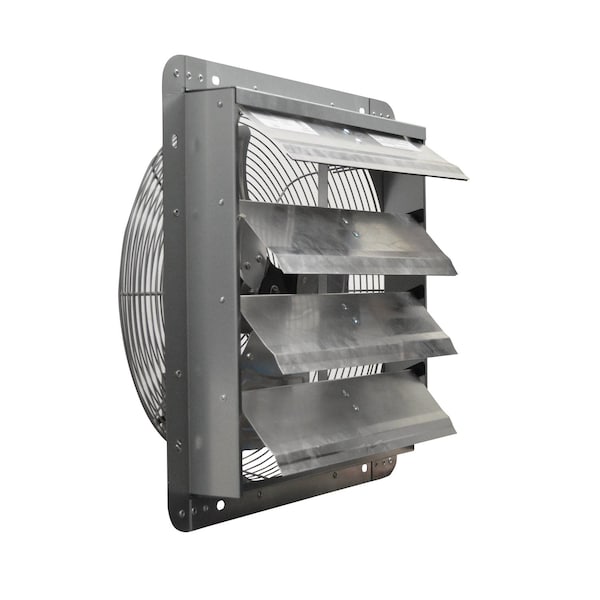

Shutter Fan, 18In Bld Dia, Galvalume, 120

  • Mfr # GSF3-18A

  • Zoro # G303541146


product price: $229.49
/ea
Free Shipping & Returns

Key Features

Exhaust/Supply Fan Item
Exhaust Fan
Blade Dia.
18 in
Fan Voltage
120
Number of Blades
3
Frame Material
Aluminum
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GSF3-18A
Zoro #
G303541146
UPC #
062345484013
Country of Origin
China

Dimensions

Blade Dia.
18 in
Overall Depth
14 5/8 in
Overall Width
21 in
Max. Depth
14 5/8 in
Overall Height
21 in
Height
21 in
Blade Diameter
18 in
Width
21 in

Details

Exhaust/Supply Fan Item
Exhaust Fan
Fan Voltage
120
Number of Blades
3
Frame Material
Aluminum
Exhaust/Supply Fan Motor HP
1/15 hp
CFM @ 0.000-In. SP
1736
Motor Enclosure
Totally Enclosed Air Over
Motor Type
PSC
Wire Guard Finish
Powder coat
Motor Insulation
Class B
Full Load Amps
0.9
Phase
1
Item
Galvanized Shutter Fan
Thermal Protection
Yes
Guard Material
Chrome Plated Wire
Bearing Type
Ball
Motor RPM
1070
Nameplate Voltage
120V AC
Number of Speeds
3
Motor Horsepower
1/15 hp
Motor Speed
1,070 RPM
Max. Ambient Temp.
40 Degrees C
Exhaust Airflow @ 0.000 in SP
1,736 cfm
Ventilation Type
Exhaust
Full Load Current
0.9 A
Blade Material
Steel
Includes
Adjustable Thermostat and Bypass, Blade, Motor, Shutter, Temperature
Frame Finish
Galvalume
Maximum Ambient Operating Temperature
104 Degrees F
Square Opening Required
19 in

Description

Galvanized Shutter Fan, Blade Diameter 18 in, Blade Material Steel, Exhaust Airflow @ 0.000 in SP 1,736 cfm, Frame Finish Galvalume, Frame Material Aluminum, Guard Material Chrome Plated Wire, Includes Adjustable Thermostat and Bypass, Blade, Motor, Shutter, Temperature, Maximum Noise Level Not Applicable
