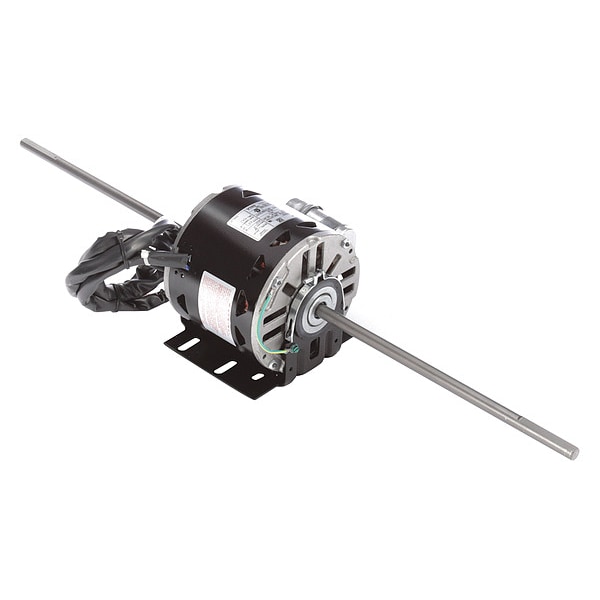

1/8 HP, 775 RPM, 115v, 3 speed, Trane

  • Mfr # 680A
  • Zoro # G0483065
product price:
$
538.99
/ea
Free Shipping & Returns

Key Features

Duty
Air Over
Shaft Length
11 1/2 in
Standards
CSA, UL
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
680A
Zoro #
G0483065
UPC #
-
Country of Origin
India
Duty
Air Over
Item
OEM Replacement Motor
Standards
CSA, UL
Max. Ambient Temp.
40 Degrees C
Hz
60 Hz
Phase
Single
Voltage
115V AC
Ins. Class
B
Motor Thermal Protection
Auto
Motor Mounting Type
Resilient Base
Motor Bearings
Sleeve
No. of Speeds
3
Capacitor Required
Capacitor Included
Frame
48Y
HP
1/8
Nameplate RPM
775
Motor Shaft Design
Flat
Motor Service Factor
1
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Full Load Amps
1.5 A
Motor Application
Blower; Fan
RPM Range
0-1,000
Voltage Compatibility
115V AC
Motor Frame Material
Rolled Steel
Weight
15 lb
Insulation Class
B
Bearing Type
Sleeve
Drive Type
Direct Drive
Full Load Current @ 60 Hz
1.5 A
Product Type
OEM Replacement Motor
Number of Speeds
3
Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Sub Application
General Purpose
Motor Enclosure Type
Open Air Over
Shaft Design
Flat
Nameplate Service Factor @ 60 Hz
1
Frequency
60 Hz
Wattage
100 W
Nameplate Horsepower @ 60 Hz
1/8 hp
Nameplate RPM @ 60 Hz
775 RPM
Nameplate Voltage @ 60 Hz
115V AC

Dimensions

Shaft Length
11 1/2 in
Shaft Dia.
1/2 in
Overall Length
28 in
Body Dia.
5 11/16 in
Shaft Diameter
1/2 in
Frame Size
48Y
Body Diameter
5.7 in
Wire Rope Length
28 in
Length
28 in

Description

OEM Replacement Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 775 RPM, No. of Speeds 3, Voltage 115V AC, 1.5 A Full Load Amps, 48Y Frame, Output Watts 100 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base, Motor Frame Material Steel
