Shop CENTURY

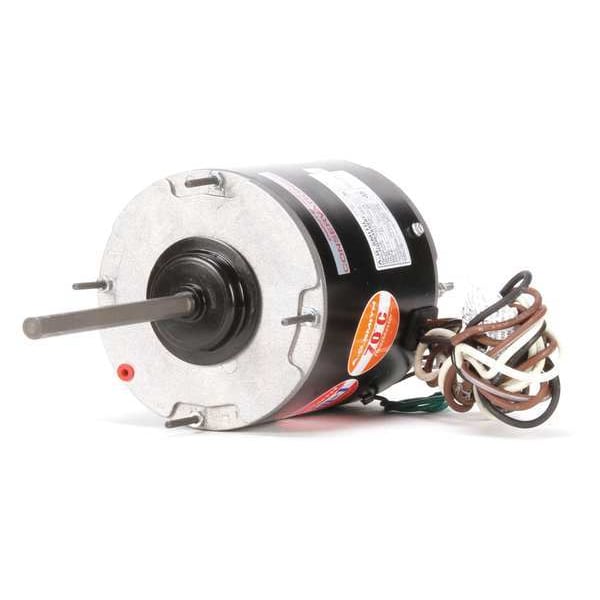

Motor, PSC, 1/2 HP, 1075 RPM, 460V, 48Y, TEAO

  • Mfr # ORM4659BF
  • Zoro # G4485695
product price:
$
320.99
/ea
Free Shipping & Returns

Key Features

Motor Shaft Design
Double-Flat
Motor Mounting Position
All Angle
Ins. Class
F
Frame
48Y
Bolt Circle Dia.
5 1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ORM4659BF
Zoro #
G4485695
UPC #
-
Country of Origin
Mexico

Dimensions

Bolt Circle Dia.
5 1/8 in
Shaft Dia.
1/2 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
5 3/8 in
Body Dia.
5 5/8 in
Mounting Stud Length
1 1/4 in
Overall Length
13 in
Stud Size
#8-32
Shaft Length
6 1/2 in
Lead Length
48 in
Frame Size
48Y
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
1/2 in
Mounting Stud Thread Size
#8-32
Body Diameter
5.6 in
Wire Rope Length
13 in
Length
13 in

Details

Motor Shaft Design
Double-Flat
Motor Mounting Position
All Angle
Ins. Class
F
Frame
48Y
Mounting Stud Location
4/Both Ends
Capacitor Required
Capacitor Not Included
Item
Condenser Fan Motor
Motor Shaft Rotation
CW/CCW
Mounting Stud Pattern
5 1/8 in x 5 1/8 in
RPM Range
1,001-1,100
Motor Enclosure Design
Totally Enclosed Nonventilated
Full Load Amps
1.05 A
No. of Speeds
1
Motor Bearings
Ball
Motor Thermal Protection
Auto
Hz
60 Hz
Voltage
460V AC
Standards
CSA Certified, UL Recognized
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Nameplate RPM
1,075
HP
1/2 to 1/5
Includes
Reversing Plug
Motor Design
Permanent Split Capacitor
Max. Ambient Temp.
70 Degrees C
Motor Application
HVAC/R
Phase
Single
Motor Service Factor
1
Duty
Continuous
Application
Condenser Fan
Motor Mounting Type
Ring/Stud
Motor Sub Application
Condenser Fan
Weight
19 lb
Number of Shafts
1
Stud Quantity
4
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Mounting Holes
4
Motor Frame Material
Steel
Usable @ 208V
Not Usable at 208V
Mounting
Stud
Number of Speeds
1
Frequency
60 Hz
Manufacturers Warranty
1 yr
Wattage
370 W
Shaft Design
Double Flat
Product Type
Condenser Fan Motor
Nameplate Service Factor @ 60 Hz
1
Motor Enclosure Type
Totally Enclosed Non-Ventilated
Frame Material
Steel
Insulation Class
F
Full Load Current @ 60 Hz
1.05 A
Mounting Position
All Angle
Sub Application
Condenser Fan
Bearing Type
Ball
Drive Type
Direct Drive
Ambient Temperature - Maximum
70 Degrees C

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp, 1/5 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 460V AC, 1.05 A Full Load Amps, 48Y Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated
