Shop CENTURY

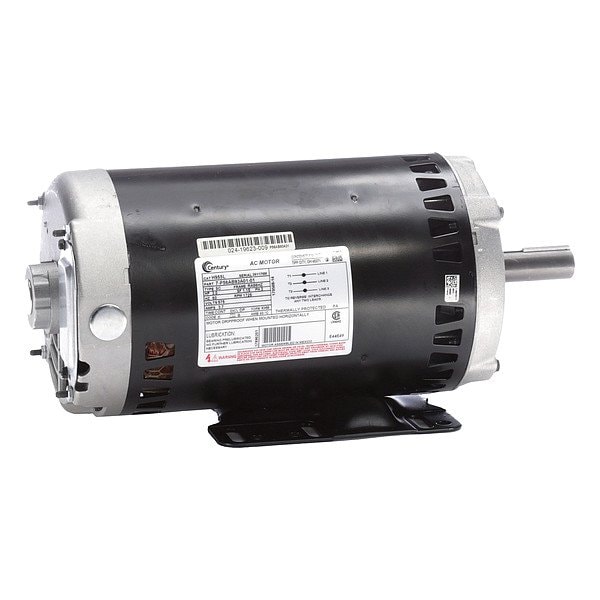

Three-Phase General Purpose Motor, 3 HP, RA56HZ Frame, 575V Voltage, 1,725 Nameplate RPM

  • Mfr # H955L

  • Zoro # G212192118

product price:
$
861.99
/ea
Free Shipping & Returns

Key Features

HP
3
Nameplate RPM
1,725
Voltage
575V
Motor Mounting Type
Rigid Base
Full Load Amps
3.7 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
H955L
Zoro #
G212192118
UPC #
786674055859
Country of Origin
Mexico
Item
General Purpose Motor
HP
3
Nameplate RPM
1,725
Voltage
575V
Motor Mounting Type
Rigid Base
Full Load Amps
3.7 A
Frame
RA56HZ
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1725
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
575 V
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Standards
CSA Certified, UL Listed
Usable @ 200V
Not Usable at 200V
Motor Thermal Protection
None
Duty Cycle
Continuous
Weight
42 lb
Usable @ 208V
Not Usable at 208V
Full Load Current @ 60 Hz
3.7 A
Number of Speeds
1
Product Type
General Purpose Motor
Efficiency Rating
NEMA Premium Efficiency
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Frame Material
Steel
Shaft Design
Keyed
Insulation Class
B
Application
General Purpose
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Motor Enclosure Type
Open Drip Proof

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 3 HP, Nameplate RPM 1,725, Frame RA56HZ, Voltage 575V, 60 Hz Hz, Three Phase, Full Load Amps 3.7 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, 1725, CSA Certified, UL Listed
