  11. 5-5/8in. Dia Fleximount Motor

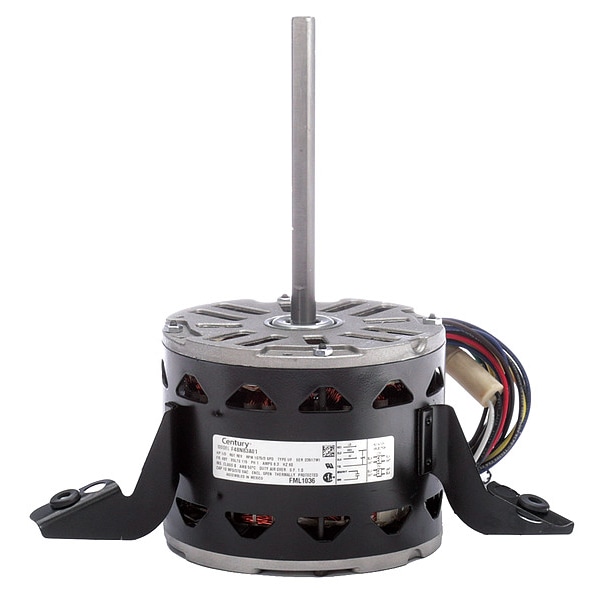

Century 5-5/8in. Dia Fleximount Motor FML1036 - main

5-5/8in. Dia Fleximount Motor

  • Mfr # FML1036

  • Zoro # G3261767

product price: $262.99
/ea
Free Shipping & Returns

Key Features

Duty
Continuous
Motor Mounting Type
Lug
Phase
Single
Motor Application
HVAC/R
Overall Length
10 3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FML1036
Zoro #
G3261767
UPC #
-
Country of Origin
India

Dimensions

Overall Length
10 3/8 in
Shaft Length
6 in
Length Less Shaft
4 3/8 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Lead Length
26 in

Details

Duty
Continuous
Item
Condenser Fan Motor
Motor Mounting Type
Lug
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Fan Coil; Room Air Conditioner; Blower
Motor Shaft Design
Flat
RPM Range
1,001-1,100
Application
Fan Coil and Air Conditioner
Frame
48Y
Hz
60 Hz
Motor Mounting Position
Horizontal
Max. Ambient Temp.
50 Degrees C
Motor Enclosure Design
Open Air-Over
Ins. Class
B
Standards
CSA Certified, UL Listed
Motor Thermal Protection
Auto
Capacitor Required
Included
Voltage Compatibility
115V AC
Motor Shaft Rotation
CCW
Motor Bearings
Ball
Full Load Amps
6.3 A
HP
1/3
Voltage
115V AC
Nameplate RPM
1,075
Motor Service Factor
1
Motor Design
Permanent Split Capacitor
No. of Speeds
3

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 3, Voltage 115V AC, 6.3 A Full Load Amps, 48Y Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Lug, Motor Frame Material Steel, Motor Mounting Position Horizontal
