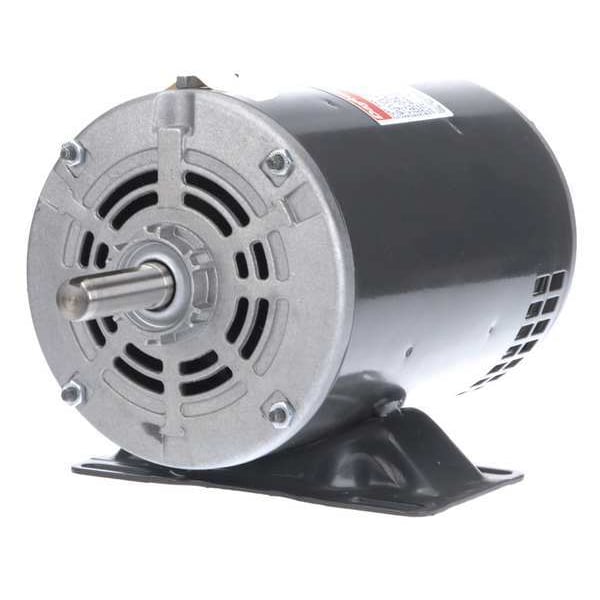

Zoro Select Motor, 3 Ph, 1 HP, 1725, 208-230/460V, 56, ODP 4YU38 - main

Motor, 3 Ph, 1 HP, 1725, 208-230/460V, 56, ODP

  • Mfr # 4YU38

  • Zoro # G3153367

product price:  $413.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Dripproof
Motor Sub Application
Direct Drive Fan/Blower
Standards
CSA Certified, UL Recognized
Nominal Efficiency
0.79 %
Ins. Class
B
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4YU38
Zoro #
G3153367
UPC #
190735339244
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 9/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Body Dia.
5 5/8 in
Overall Length
11 1/2 in
Frame Size
56
Shaft Diameter
5/8 in
Body Diameter
5.6 in

Details

Motor Enclosure Design
Open Dripproof
Motor Sub Application
Direct Drive Fan/Blower
Standards
CSA Certified, UL Recognized
Nominal Efficiency
0.79 %
Ins. Class
B
Motor Thermal Protection
None
Phase
Three
Hz
60/50 Hz
Capacitor Required
Capacitor Not Required
Full Load Amps
3.4-3.4/1.7 A
No. of Speeds
1
Item
Fan and Blower Motor
Max. Ambient Temp.
40 Degrees C
Motor Bearings
Ball
Motor Mounting Type
Rigid Base
Voltage
208-230/460V AC
Frame
56
Motor Application
HVAC/R
Nameplate RPM
1,725
HP
1
Motor Service Factor
1.15
RPM Range
1,701-1,800
Motor Design
Three-Phase
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Duty
Continuous
Usable @ 208V
Usable at 208V
Stud Quantity
4
HP @ 50Hz
1
Usable @ 200V
Not Usable at 200V
Full Load Amps @ 50Hz
1.70 A
Voltage @ 50Hz
460V AC
Number of Shafts
1
Service Factor @ 50Hz
1.15
Duty Cycle
Continuous
Includes
Capacitor
RPM @ 50Hz
1,725 RPM
Mounting
Rigid Base
Number of Speeds
1
Product Type
Fan and Blower Motor
Frame Material
Steel
Full Load Current @ 60 Hz
3.4-3.4/1.7 A
Nameplate Horsepower @ 50 Hz
1 hp
Motor Enclosure Type
Open Drip Proof
Frequency
60/50 Hz
Nameplate Voltage @ 50 Hz
460V AC
Mounting Position
All Angle
Insulation Class
B
Nameplate Service Factor @ 60 Hz
1.15
Nameplate Service Factor @ 50 Hz
1.15
Sub Application
General Purpose
Drive Type
Belt Drive
Shaft Design
Keyed
Full Load Current @ 50 Hz
1.70 A
Nameplate RPM @ 50 Hz
1,725 RPM
Application
Fan/Blower
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 3.4-3.4/1.7 A Full Load Amps, 56 Frame, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
